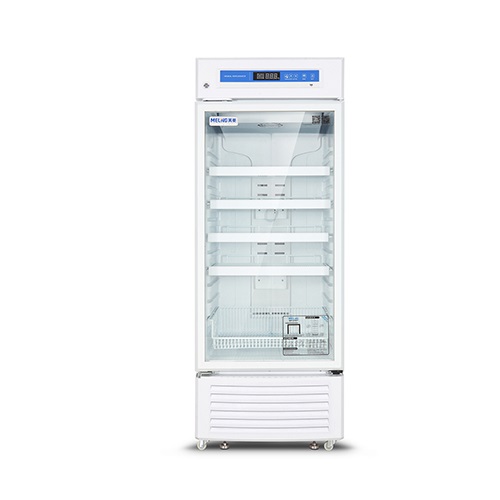

MELING YC-315L 疫苗冰箱 (2℃~8℃, 315L)

Capacity (L): 315

Internal Size (W*D*H)mm: 580*533*1122

External Size (W*D*H)mm: 650*673*1762

Package Size (W*D*H)mm: 717*732*1785

NW/GW (Kgs):  87/99

Performance

Temperature Range: 2~8℃

Ambient Temperature: 16-32℃

Cooling Performance: 5℃

Climate Class: N

Controller: Microprocessor

Display: Digital display

Refrigeration

Compressor: 1pc

Cooling Method: Air cooling

Defrost Mode: Automatic

Refrigerant: R600a

Insulation Thickness (mm): L/R:35,B:52

Construction

External Material: Powder coated material

Inner Material: HIPS

Shelves: 4+1 (coated steel wired shelf)

Door Lock with Key: Yes

Lighting: LED

Access Port: 1pc. Ø 25 mm

Casters: 4+（2 leveling feet）

Data Logging/Interval/Recording Time: USB/Record every 10 minute / 2 years

Door with Heater: Yes

Standard Accessory: RS485，Remote alarm contact，Backup battery

Alarm

Temperature: High/Low temperature,High ambient temperature,Condenser overheating

Electrical: Power failure , Low battery,

System: Sensor failure,Door ajar，Built-in datalogger USB Failure，Communication failure

Electrical

Power Supply (V/HZ): 220~240/50

Rated Current (A): 1.35

Options Accessory

Optional: Printer,RS232
