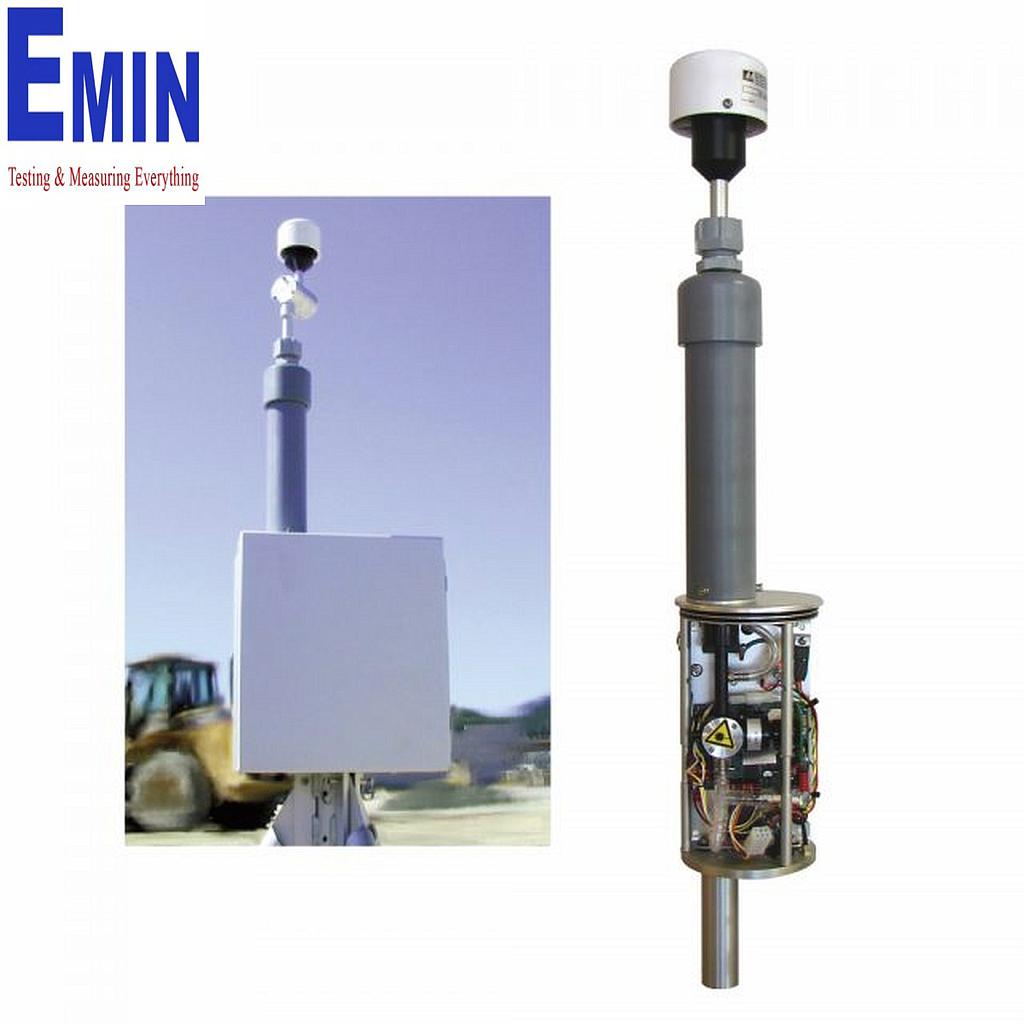

Met One E-SAMPLER气溶胶监测仪
制造商: METONE Model: E-SAMPLER - 联系
Manufacturer: Met One
Model: E-SAMPLER
Origin: USA
Warranty: 12 months
Features
- Programmable Auto-Zero
- Programmable Auto-Span
- Auto-ranging (1 to 65000 μm/m3)
- Automatic Flow Control Protocol
- Internal Battery (30 Hours Operation without heater & 10 Hours with heater.)
- Laser-Diode Precise Optical Engine
- Integral 47mm Analysis Filter
- Ambient Pressure and Temperature
- Internal Datalogger
- PM10, PM2.5, PM1, TSP Monitoring
- Aluminum Weatherproof Enclosure
- Purge-Air protected Optics
- Completely Self-Contained
- No Tools Filter Replacement
Specifications
| Concentration Ranges (Auto-ranging): |
-0.5, 0-1, 0-10 0-65 mg/m3 |
| Laser: | 670 nm, 5 mW |
| Sensitivity: | 0.001mg/m3 |
| Sample Period: | 1 sec |
| Sample Flow Rate: | 2 LPM |
| Pump Type: | Diaphram 10,000 hr |
| Accuracy: | 8% of NIOSH 0600 |
| Precision: | 0.003 mg/m3 or 2% reading |
| Particle Size Sensitivity Range: | 0.1-100 micron |
| Long term Stability: | 5% reading |
| Sensor Type: | Forward Light Scatter |
| Average Period: | 1 – 60 minutes |
| Display: | 4X20 LCD |
| Internal Battery (Optional): | 12 VDC 12 Amp-Hr, lead acid |
| Power Consumption: | 350mA (no heater), 1.1 A (w/heater) |
| Internal Battery Operation, no heater: | >30 Hours |
| Internal Battery Operation, heater: | 10 Hours |
| Size: | 10.5 (267) X 9.25 (235) X 5.7 (145) inches (mm) |
| MOI Service Period: | 2 yrs |
| Programmable Auto-Zero: | 15min to 24 hours |
| Programmable Auto-Span: | 15min to 24 hours |
| Traceable Testing: | Gravimetric |
| Sample Line Heater: | Configurable RH Controlled |
| Outputs: | Analog 0-1,0-2.5, 0-5VDC, RS232 |
| Data Storage Capacity: | 12000 Records |
| Temperature Compensation: | Standard |
| Temperature Range: | -30C to +50C |
| RH Measurement: | Internal |
| Ambient Temperature: | -30C to +50C |
| Ambient Pressure: | 1040 to 600 mbars |
| Alarm: | Contact Closure |
| Available Cut Points: |
TSP, PM10, PM2.5, PM1 |
| Standard Equipment | ||
| Universal Voltage Power Supply | ||
| Battery Charger Internal | ||
| 47 mm Filter Holder | ||
| Comet Software | ||
| TSP Inlet | ||
| Inlet Heater | ||
| Digital Output Cable | ||
| Instruction Manual | ||
| Options | ||
| PM10, PM2.5, PM1 Sharp-Cut Cyclone | ||
| Low Temperature Option, -40C to +50C | ||
| Aluminum Tripod | ||
| MicroMet Software | ||
| Radio Modem | ||
| Satellite | ||
| Wind Speed/Direction Sensor | ||
| Ambient RH | ||
| External Battery Cable | ||
| Battery | ||
