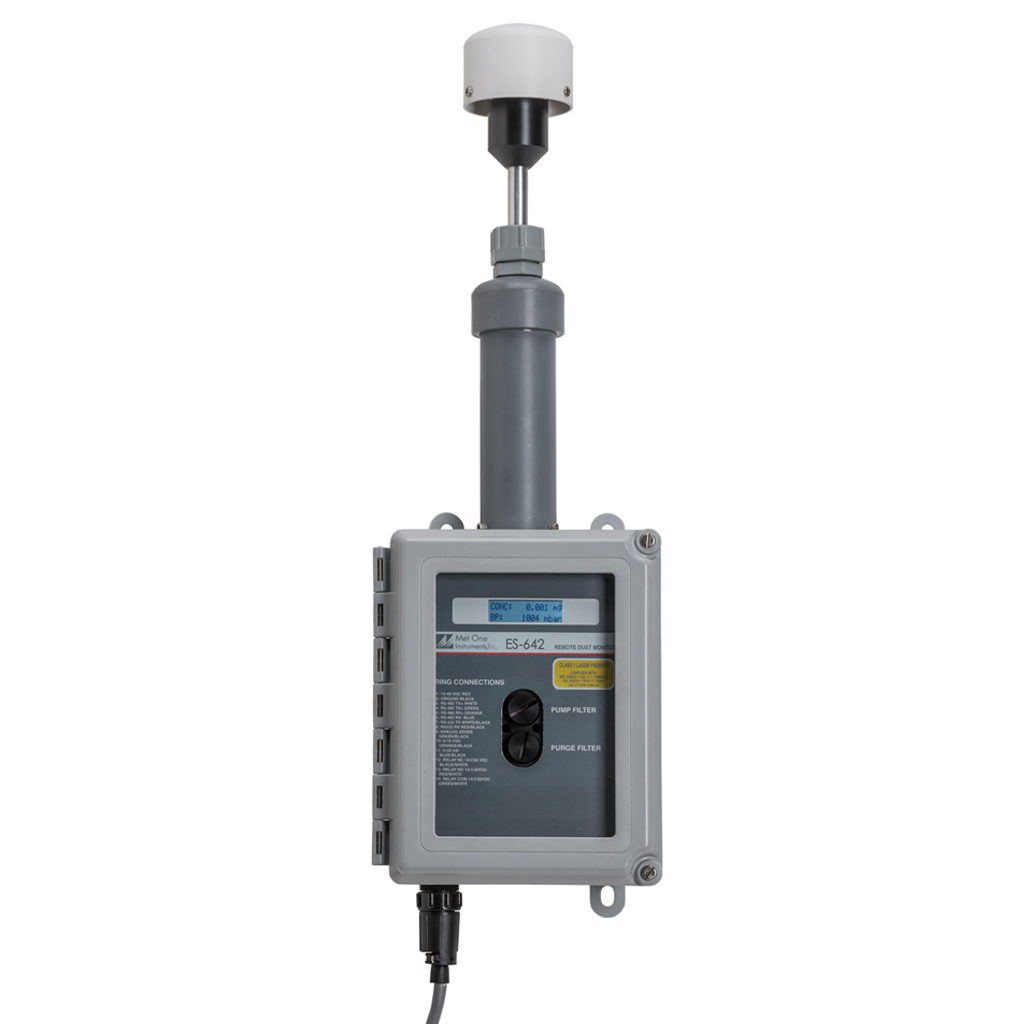

METONE ES-642 远程尘埃监测仪 (0~100 mg/m3)

APPLICATIONS:

- Building Automations

- Environmental Clean Up Sites

- Air Pollution Level Monitoring

- Dust Level Warning Systems

- Military Applications

- Surface Emissions Modeling

- HVAC Control

- Industrial Hygiene

SPECIFICATIONS:

- Measurement Principles: Particulate concentration by forward light scatter laser Nephelometer

- Available Cut Points: TSP Inlet Standard. PM10, PM2.5, and PM1 sharp-cut cyclone inlets available.

- Measurement Range: 0 to 100 mg/m3 (0 to 100,000 µ g/m3)

- Measurement Sensitivity: .001 mg/m3.

- Nephelometer Accuracy: ± 5% traceable standard with 0.6um PSL.

- Particle Size Sensitivity: 0.1 to 100 micron. Optimal sensitivity 0.5 to 10 micron particles.

- Display: 2 X 16 back lit LCD. Provides information on operation including: Power, Flow Operation, Status and Concentration.

- Zero Calibration: Automatic Zero Calibration every hour or as programmed from 1 to 999 minutes.

- Flow Rate: 2.0 liters/minute ± 0.1 lpm

- Power: 15 – 40 VDC @ 1.5 A maximum

- Power Consumption: 350 mA (no heater) 1.1 A (with heater) @ 15 VDC

- Analog Output: 4-20 mA and 0 – 10 VDC

- Digital I/O: RS-485 full and half duplex, RS-232

- Serial Communication: ASCII Text data and MODBUS RTU

- Alarm Output: Normally open and normally closed relay 30 VDC @ 1A maximum

- Operating Temperature: 0 to +50°C (Ambient Temperature Sensor Range -30 to +50°C)

- Barometric Pressure: 600 to 1040 mbar pressure sensor range

- Ambient Humidity Range: 0 to 90% RH, non-condensing

- Intake Moisture Control: Automatic 10 Watt inlet heater module controlled to sample RH set point.

- Factory Service Interval: 24 Months typical, under continuous use in normal ambient air.

- Mounting Options: Wall mount bracket standard, or EX-905 tripod

- Unit Weight: 2.27 kg ( 6.0 lbs)

- Unit Dimensions: 22.9cm high, 17.8cm wide, 10.8cm deep, (9.0” x 7.0” x 4.25”), w/out inlet assy.

                              48.3cm high, 17.8cm wide, 10.8cm deep, (19.0” x 7.0” x 4.25”), w/ inlet assy.
