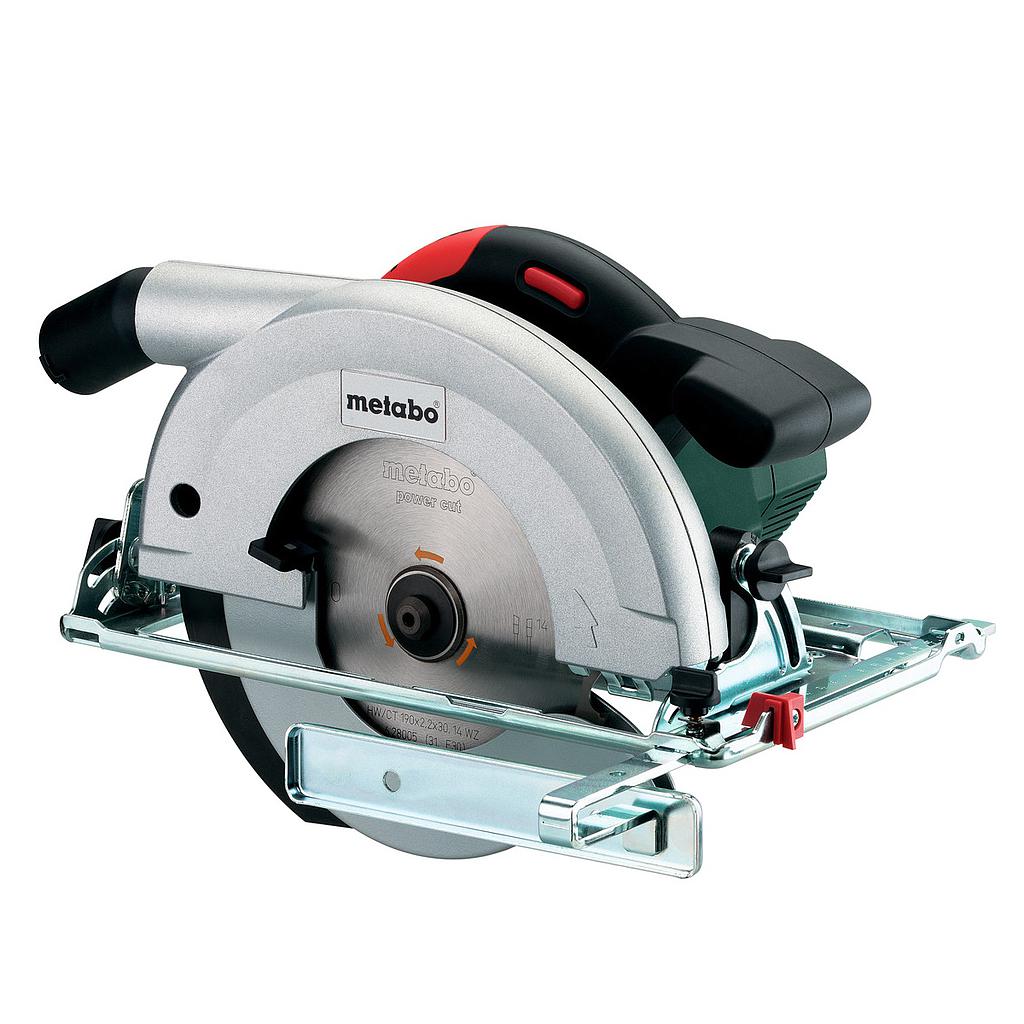

METABO KS 66 手电锯 (4200 rpm)

Rated input power: 1400 W

Output power: 800 W

Maximum cutting depth at 90°: 66 mm / 2 19/32 "

Maximum cutting depth at 45°: 47 mm / 1 13/16 "

Saw blade Ø x bore: 190 x 30 mm / 7 1/2 x 1.181 "

Swivel range from / to:‌ 0 / + 45 °

No-load speed: 4200 rpm

Revolutions at rated load: 3200 rpm

Max. cutting speed: 42 m/s / 138 ft/s

Torque: 9 Nm / 80 in-lbs

Weight (without power cable): 5.5 kg / 12.1 lbs

Cable length: 4 m / 13 ft

Vibration

Sawing chipboards: 2.5 m/s²

Uncertainty of measurement K: 1.5 m/s²

Noise emission

Sound pressure level: 95 dB(A)

Sound power level (LwA): 106 dB(A)

Uncertainty of measurement K: 3 dB(A)

Delivery

Carbide circular saw blade (14 teeth)

Parallel guide / rip fence

Hexagonal wrench

Accessories

SAWING

Circular saw blades, Other accessories for jigsaws, Other accessories for circular saws

OTHER ACCESSORIES

Accessories for wall chasers, Accessories for vacuum cleaners, Occupational safety, Accessories for paint remover, Accessories for routers

Datasheet

Features

Metabo S-automatic torque limiting clutch: mechanical decoupling of the drive for safe working should the saw blade stop unexpectedly.

Clearly visible cutting indicator for precise sawing after initial cut

0° position re-adjustable for highest cutting precision

Lubrication system for long service life of the gear

Extraction possibility by means of connecting an all-purpose vacuum cleaner

Controllable chip ejection by means of rotating extraction nozzle

Auto-stop carbon brushes to protect the motor

Precise cuts with guide rail and matching adapter (accessory)
