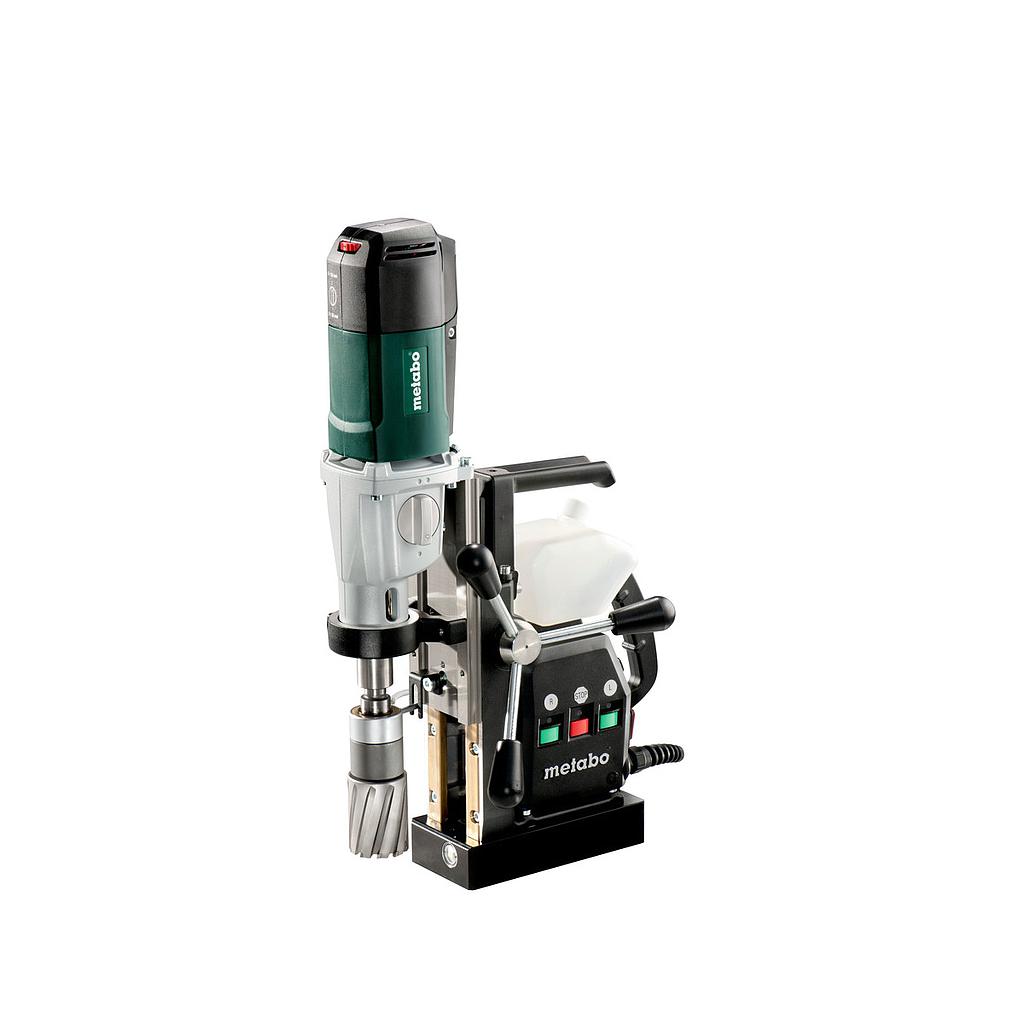

METABO MAG 50 磁力电钻 (220-240 V / 50-60 Hz)

Rated input power: 1200 W

Output power: 620 W

Max. drill-Ø with core drill: 50 mm / 2 "

Max. drill-Ø with spiral drill: 20 mm / 3/4 "

Maximum drilling depth: 50 mm / 2 "

Thread cutting: M 16

No-load speed: 100 - 250 / 200 - 450 rpm

Revolutions at rated load: 250 / 450 rpm

Bit retainer: Morse taper MK 2 / Weldon shaft 19 mm (3/4")

Weight: 12.7 kg / 28 lbs

Cable length: 5 m / 16 ft

Torque: 90 / 50 Nm // 797 / 443 in-lbs

Max. depth of feed: 160 mm / 6 5/16 "

Max. magnetic holding force: 12250 N

Dimensions of the magnet base9: 0 x 190 mm / 3 9/16 x 7 1/2 "

Height carriage lowest position: 457 mm / 18 "

Height carriage topmost position: 610 mm / 24 "

Vibration

Drilling in metal: 2.5 m/s²

Uncertainty of measurement K: 1.5 m/s²

Noise emission

Sound pressure level: 79 dB(A)

Sound power level (LwA): 92 dB(A)

Uncertainty of measurement K: 3 dB(A)


Delivery

Industrial holder for Weldon shank 19 mm

Safety strap

Hexagon socket wrench SW 5

Swarf protection guard

Transport case

Ejector pins 75 and 100 mm

MK 2 drift key

Accessories

DRILLING/CHISELLING

Core drills, Further accessories for core drills

CHUCKS

Keyless chucks, Geared chucks, Further accessories chucks

OTHER ACCESSORIES

Occupational safety

Details

Datasheet


Features

Large stroke, therefore suitable for use of core drills, spiral drills and countersinks

Magnetic base with high holding power permits working on vertical surfaces and overhead

Robust Metabo marathon motor with internal wiring for long service life

Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load

Clockwise/anti-clockwise rotation with thread cutter

Durable two-speed gearbox with oil bath lubrication for ideal speeds

Integrated coolant container for easy to dose internal cooling of the core drill

Bright LED light for easy alignment in poor light conditions

Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact

Protective circuit starts motor only if the magnet is activated

Overload protection: protects the motor from overheating

Restart protection: prevents unintentional start-up after power supply interruption

Lockable slide for comfortable tool change

Handle for easy carrying and lifting

Resistant mains cable (5 m) with rubber shroud
