Dimensions: 740 x 750 x 355 mm / 2.5 x 2.5 x 1.2 ft
Max. support surface: 970 x 995 mm / 38 3/16 x 39 3/16 "
Working height: 850 / 355 mm // 33 1/2 / 14 "
Cutting height: 0 - 87 mm // 0 - 3 3/8 "
Maximum cutting height 90/45°: 87 / 54 mm // 3 7/16 / 2 "
Maximum cutting width at parallel guide/rip fence: 630 mm / 24 3/4 "
Maximum material width at mitre fence: 200 mm / 7 7/8 "
No-load speed: 4200 rpm
Cutting speed: 56 m/s / 184 ft/s
Saw blade: 254 x 30 mm / 10 x 1.181 "
Saw blade swivel range: -1.5 - 46.5 °
Rated input power S1 100%: 1700 W
Rated input power S6 20%: 2000 W
Weight: 33.4 kg / 73.6 lbs kg
Cable length: 3.1 m / 10 ft
Sound pressure level: 99 dB(A)
Sound power level (LwA): 112 dB(A)
Uncertainty of measurement K: 3 dB(A)
Carbide saw blade with alternately bevel-ground tips (40 teeth)
Parallel Guide / Rip Fence
Table Length Extension
Table width extension (right)
Saw blade case
Hard rubber tyres
Circular saw blades, Other accessories for semi-stationary/stationary saws

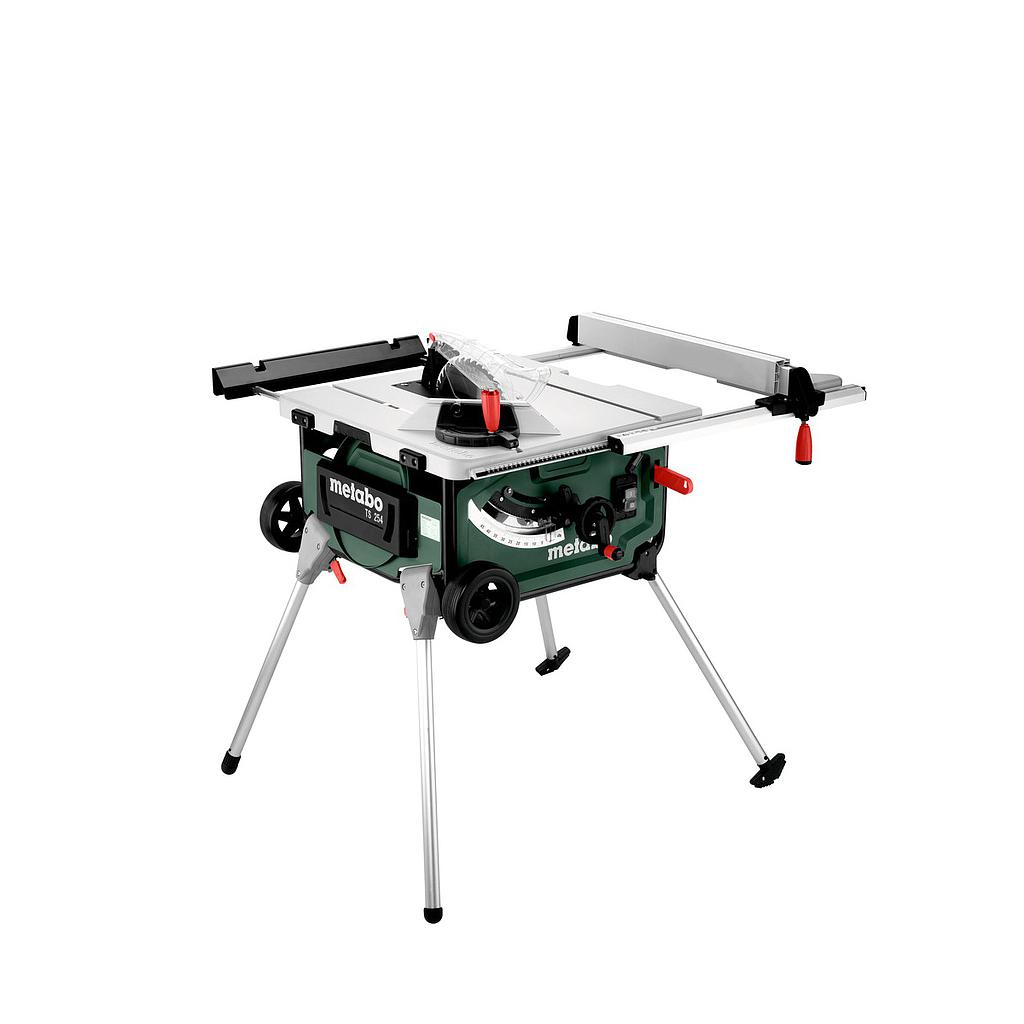

Extremely light table saw with trolley function for more mobility on the construction site
Integrated stand made from stable die-cast aluminium (patented): unfolded in a matter of seconds with secure stand
Very compact with folded stand for comfortable transport and space-saving storage
Second working height for working near ground level
Anti-twist tubular frame construction for highest demands on the building site and during installations
Cables and all add-on components for transport can be stored on the casing
Powerful motor with electronic overload protection
Motor brake for quick stop of the saw blade in 3 seconds
Restart protection: prevents unintentional start-up after power supply interruption
Soft start for long service life of motor and drive
Precise parallel guide with double clamping and quick fastening
Precise saw blade inclination via gear guide
Automatic resetting to 0 – 45 ° after undercuts
Easy saw blade change with spindle lock
Splitting wedge can be lowered without tools for hidden cuts and transport
Precise, extendable table width extension for extra large working surfaces
