Dimensions: 670 x 650 x 355 mm / 2.2 x 2.2 x 1.2 ft
Max. support surface: 780 x 930 mm / 30 1/2 x 36 1/2 "
Working height: 355 mm / 14 "
Cutting height: 0 - 63 mm // 0 - 2 1/2 "
Maximum cutting height 90/45°: 63 / 43 mm // 2 1/2 / 1 11/16 "
Maximum cutting width at parallel guide/rip fence425 mm / 16 3/4 "
Maximum material width at mitre fence: 165 mm / 6 1/2 "
No-load speed: 5000 rpm
Cutting speed: 57 m/s / 187 ft/s
Saw blade: 216 x 30 mm / 8 1/2 x 1.181 "
Saw blade swivel range: -1.5 - 46.5 °
Rated input power: 1500 W
Weight: 23.2 kg / 49 lbs kg
Cable length: 3 m / 10 ft
Sound pressure level: 89 dB(A)
Sound power level (LwA): 102 dB(A)
Uncertainty of measurement K: 3 dB(A)
Carbide saw blade with alternately bevel-ground tips (30 teeth)
Table Length Extension
Table width extension (left)
Table width extension (right)
Chip and Dust Extraction Unit
Parallel Guide / Rip Fence
Circular saw blades, Other accessories for semi-stationary/stationary saws

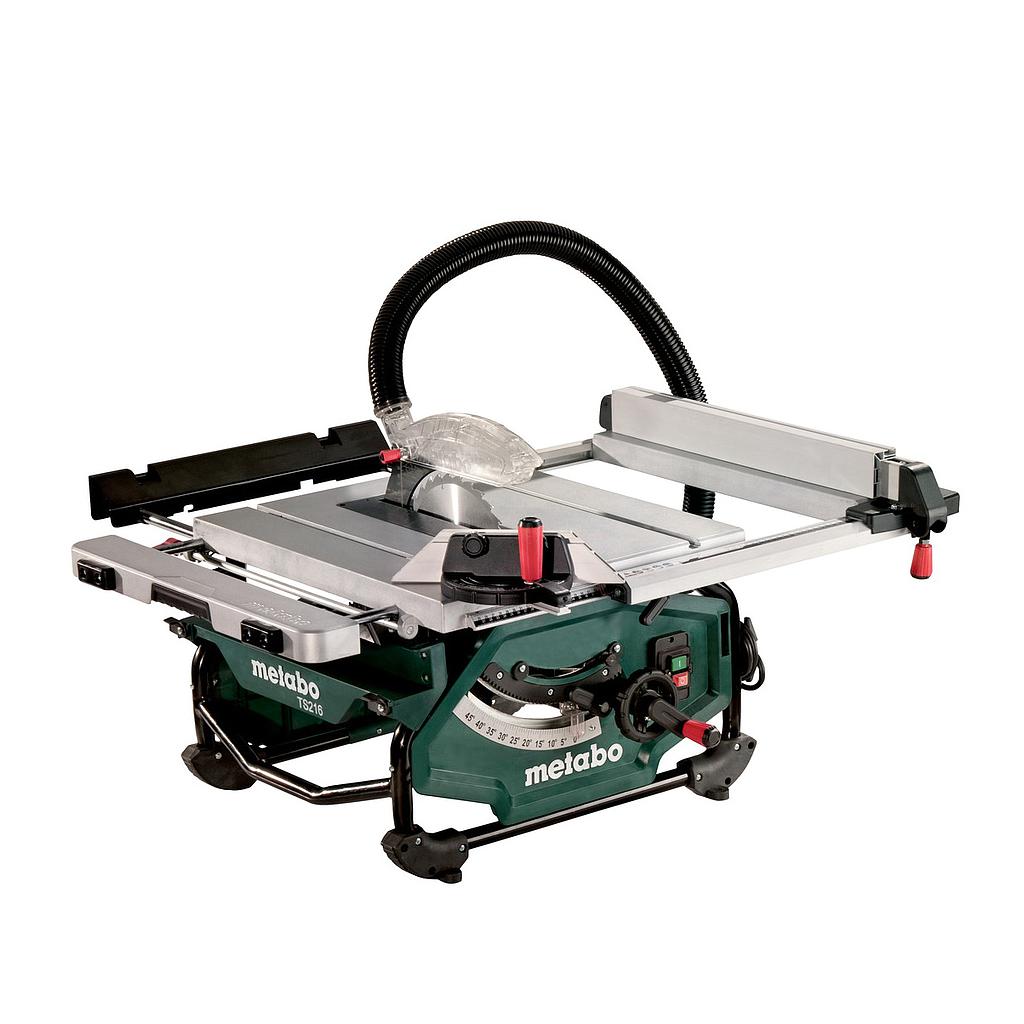

Light table saw, also suitable for one-handed transport
Anti-twist tubular frame construction for highest demands on the building site and during installations
Cables and all add-on components for transport can be stored on the casing
Powerful motor with electronic overload protection
Motor brake for quick stop of the saw blade in 3 seconds
Restart protection: prevents unintentional start-up after power supply interruption
Soft start for long service life of motor and drive
Precise parallel guide with double clamping and quick fastening
Precise saw blade inclination via gear guide
Automatic resetting to 0 – 45 ° after undercuts
Easy saw blade change with spindle lock
Splitting wedge can be lowered without tools for hidden cuts and transport
Precise, extendable table width extension for extra large working surfaces
Dual port dust extraction for low dust emission
