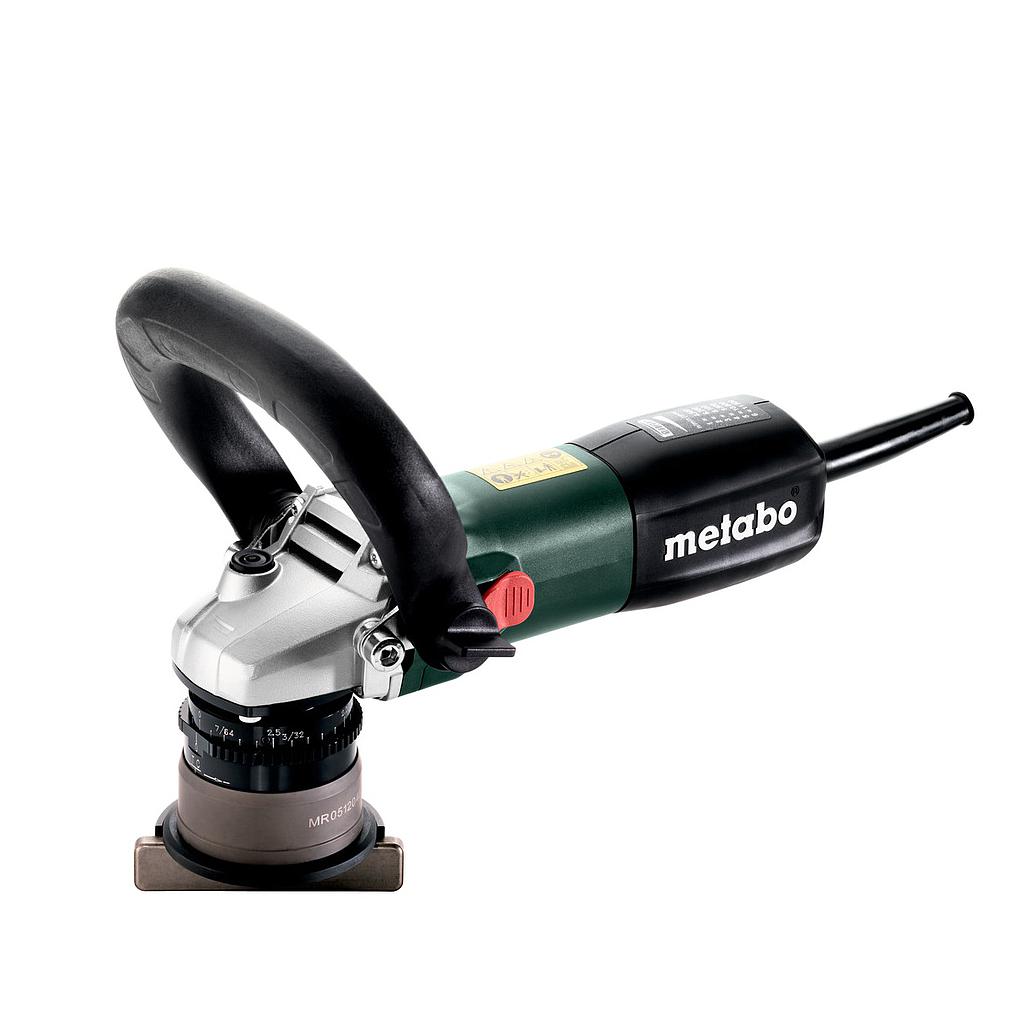

METABO KFM 9-3 RF 层压板修边机 (220-240 V / 50-60 Hz)

No-load speed: 4500 - 11500 rpm

Rated input power: 900 W

Output power: 470 W

Type of edges: Chamfer and radius

Max. chamfer width 45°: 6 mm / 1/4 "

Max. chamfer height at 45°: 4 mm / 5/32 "

Possible radii: R2 / R3

Grading of cutting depth setting: 0.1 mm / 0.00394 "

Curves smallest internal Ø: 13 mm

Weight (without power cable): 2.5 kg / 5.5 lbs

Cable length: 4 m / 5/32 "

Noise emission

Sound pressure level: 87 dB(A)

Sound power level (LwA): 98 dB(A)

Uncertainty of measurement K: 3 dB(A)


Delivery

2 x carbide indexable inserts 45° chamfer (ISO: DCMT 11 T 304)

Guide Stop

Screwdriver Torx 15

Bow-type handle

MetaLoc case

2 x Carbide indexable inserts radius R2

2 x Carbide indexable inserts radius R3

Accessories

OTHER ACCESSORIES

Accessories for bevelling tools

Detail


Datasheet


Features

Compact metal bevelling tool for 45° chamfers and radii of 2 to 3 mm at visible edges

Surfaces free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion

One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working

Slim cutter head with standard carbide indexable inserts and ball-bearing stationary seal ring for working in tubes and in curves

Guide stop for a uniform finish and high quality of the surface when processing straight sheets

Metabo Marathon-motor with patented dust protection for long service life

Thumbwheel controlled Vario-Constamatic (VC)-Full wave electronics ideal for working on materials requiring customised speeds, and at speeds which remain almost constant under load

Electronic safety shutdown of the motor for safe working in case the tool stops unexpectedly

Electronic overload protection, soft start and restart protection

Slim design for ideal handling
