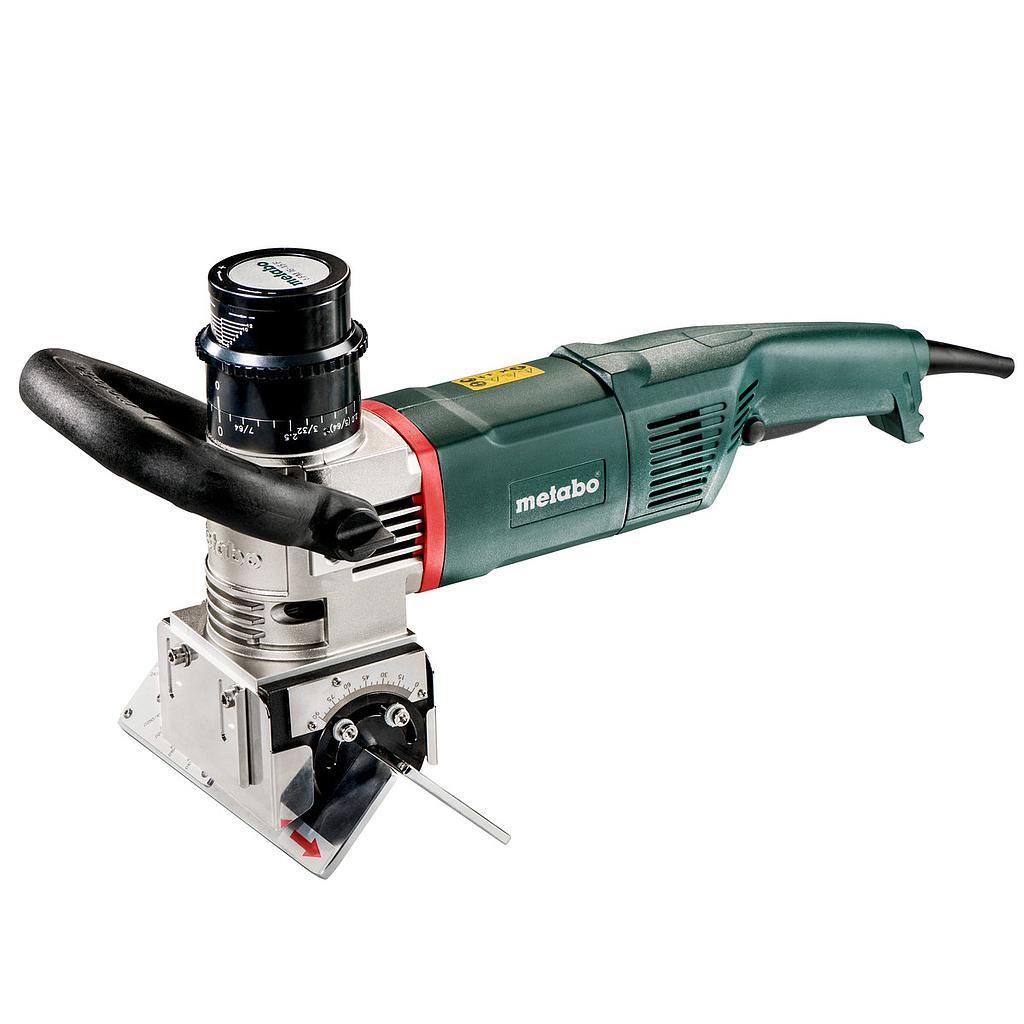

METABO KFM 16-15 F 层压板修边机 (220-240 V / 50-60 Hz)

No-load speed: 12000 rpm

Rated input power: 1600 W

Output power: 900 W

Type of edges: Chamfer

Max. chamfer width 45°: 21 mm / 13/16 "

Max. chamfer height at 45°: 15 mm / 19/32 "

Grading of cutting depth setting: 0.1 mm / 0.00394 "

Curves smallest outer Ø: 100 mm / 3 15/16 "

Weight (without power cable): 6.9 kg / 15.2 lbs

Cable length: 4 m / 157 1/2 "

Noise emission

Sound pressure level: 93 dB(A)

Sound power level (LwA): 104 dB(A)

Uncertainty of measurement K: 3 dB(A)


Delivery

3 x Carbide indexable inserts Universal

2 x Screwdriver SW 4 with T-handle

2 x Open-jawed spanner SW 10

2 x Metal carry case

2 x Stop roller

2 x Screwdriver Torx 15

Accessories

OTHER ACCESSORIES

Accessories for bevelling tools


Detail


Datasheet


Features

Metal bevelling tool for chamfer heights up to 15 mm for weld seam preparation

One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working

Precise setting of the chamfer angle directly via the guide plates

Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°

Controlled working by virtue of large-scale guide plates

Stop roller to guide along pipes for easy preparation of weld seams

Front handle for safe and uniform guidance, adjustable without the need for tools

Metabo Marathon-motor with patented dust protection for long service life

Electronic overload protection, soft start and restart protection

Protection of the user by virtue of lateral plates for conveying the chips
