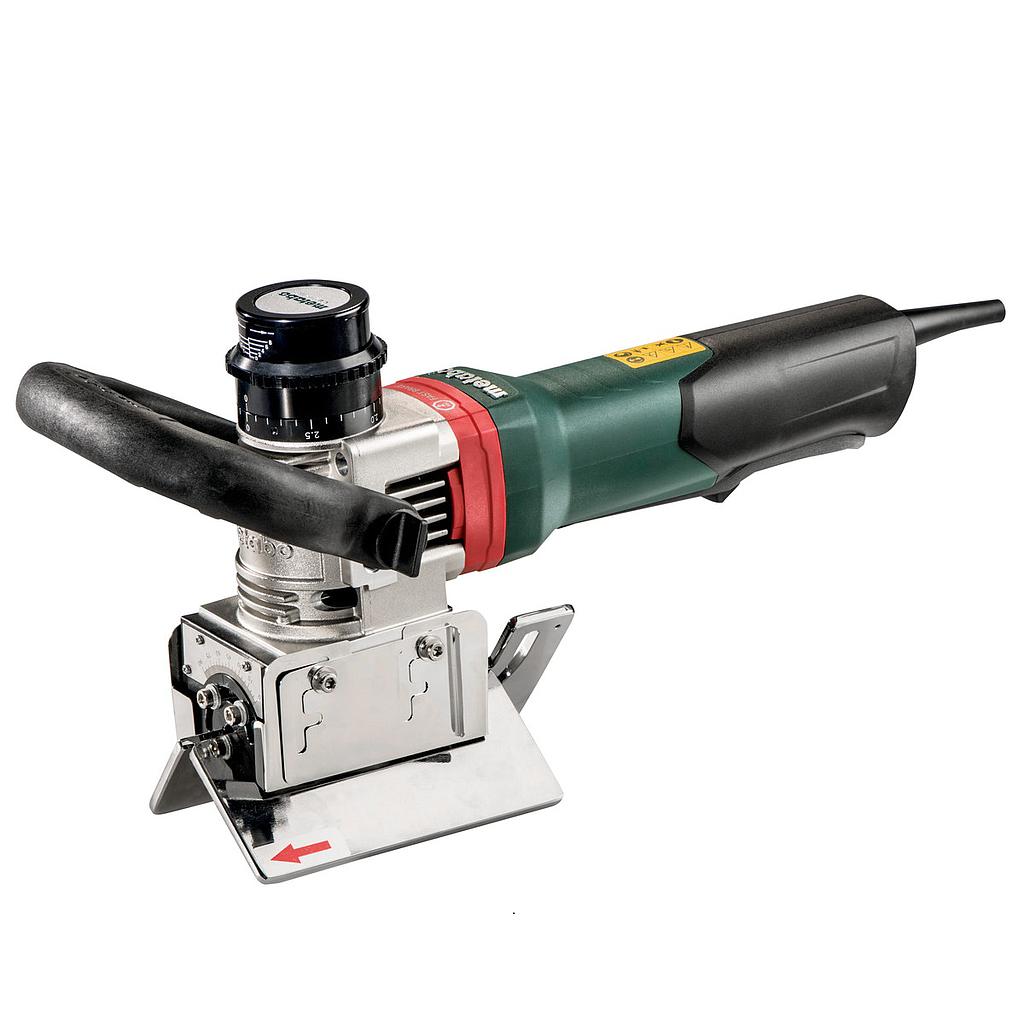

METABO KFMPB 15-10 F 层压板修边机 (220-240 V / 50-60 Hz)

  • 制造商: METABO
    Model: KFMPB 15-10 F
    P/N: 601755500
    来源: Germany
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




No-load speed: 12500 rpm

Rated input power: 1550 W

Output power: 840 W

Type of edges: Chamfer

Max. chamfer width 45°: 14 mm / 9/16 "

Max. chamfer height at 45°: 10 mm / 3/8 "

Grading of cutting depth setting: 0.1 mm / 0.00394 "

Curves smallest outer Ø: 75 mm / 2 15/16 "

Weight (without power cable): 5.1 kg / 11.2 lbs

Cable length: 4 m / 157 1/2 "

Noise emission

Sound pressure level: 91 dB(A)

Sound power level (LwA): 102 dB(A)

Uncertainty of measurement K: 3 dB(A)


Delivery

3 x Carbide indexable inserts Universal

2 x Screwdriver SW 4 with T-handle

2 x Open-jawed spanner SW 10

2 x Side handle

2 x Metal carry case

2 x Stop roller

2 x Screwdriver Torx 15

Accessories

OTHER ACCESSORIES

Accessories for bevelling tools

Details


Datasheet


Features

Metal bevelling tool for chamfer heights up to 10 mm for weld seam preparation with maximum user safety by virtue of a dead-man switch and brake system

One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working

Precise setting of the chamfer angle directly via the guide plates

Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°

Controlled working by virtue of large-scale guide plates

Stop roller to guide along pipes for easy preparation of weld seams

Front handle for safe and uniform guidance, adjustable without the need for tools

Metabo Marathon-motor with patented dust protection for long service life

Tacho Constamatic (TC) Full-wave Electronics: fast work progress by means of constant speed under load

Patented, mechanical brake system stops the router bit within 2 seconds after switching off

Electronic overload protection, soft start and restart protection

Protection of the user by virtue of lateral plates for conveying the chips
