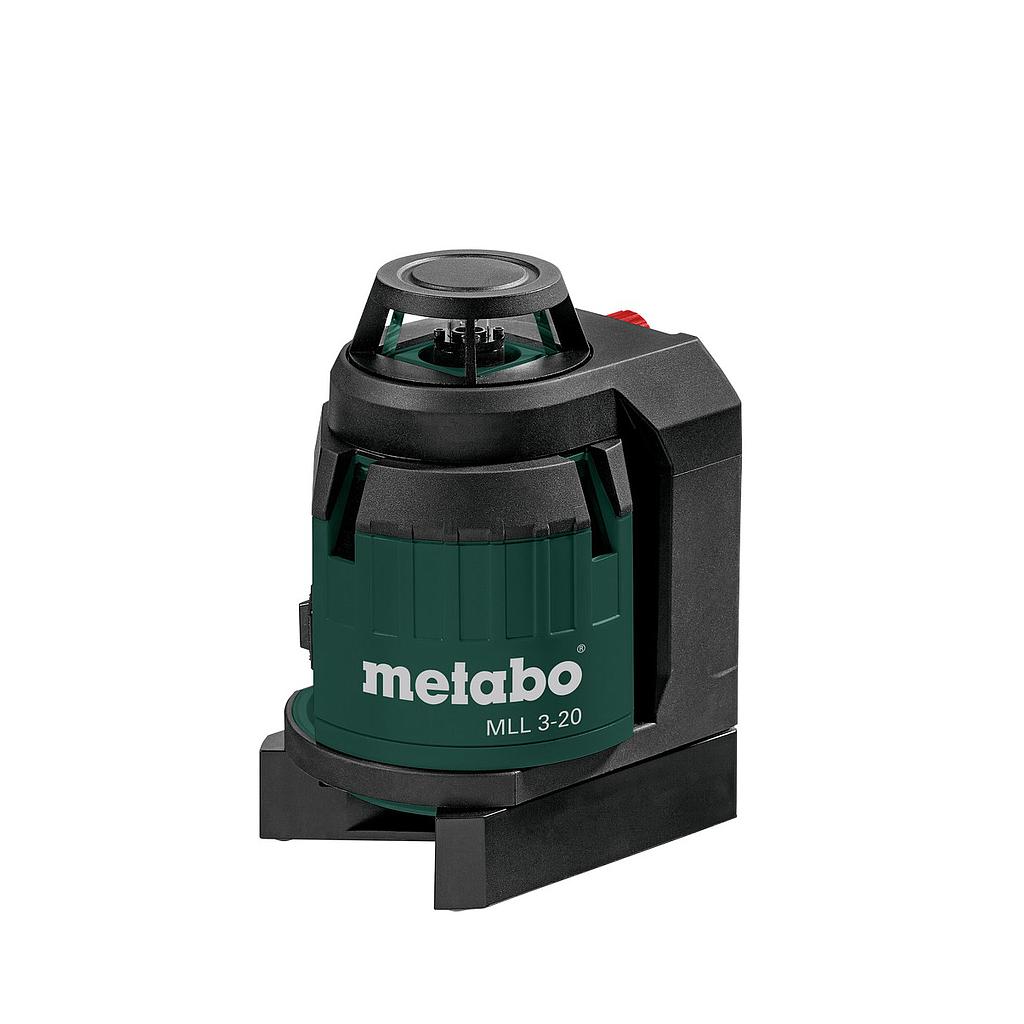

METABO MLL 3-20 多线激光发生器

  • 制造商: METABO
    Model: MLL 3-20
    P/N: 606167000
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Laser class: 2

Wavelength: 635 nm

Light output: < 1 mW

Laser visibility in indoor areas: 20 m / 66 ft

Levelling accuracy: ± 0.3 mm/m / ± 0.1875 " over 50 ft

Self-levelling range: ± 4 °

Straightness of lines: ± 0.2 mm/m / ± 0.125 " over 50 ft

Accuracy 90° angle: ± 0.3 mm/m / ± 0.1875 " over 50 ft

Operating time per battery charge: 10 h

Protection type IPIP 54

Weight (with batteries): 0.98 kg / 2.16 lbs

Laser functions: Line function, horizontal / Line function, vertical / Right angle (90°) / Plumb-line function

Number of lines: 3

Number of points: 1

Tripod thread: 5/8 "


Delivery

Target plate

4 x Batteries AA 1.5 V (LR6)

MetaLoc case

Wall bracket

Laser goggles

Accessories

OTHER ACCESSORIES

Accessories for measuring tools

Details

Datasheet


Features

360° horizontal line for marking, alignment and levelling across the entire room

Handy, robust device with impact-proof housing and soft grip material

Self-levelling thanks to pendulum technology

Manual fine adjustment of the 90° angle of the vertical lines while maintaining the plumb point

Protection and transport function: Laser in U-frame can be pivoted by 360° to protect the laser optics and pendulum

Stable aluminium upper housing to protect the horizontal laser optics

Extendible foot for height adjustment, folding for direct placement against U profiles

Variable use of the laser: on the floor, mounted on a tripod, fastened to metal with magnet or fixed with metal lugs

Rare earth magnet with V-groove for stable placement on metallic objects

Energy-saving power controls for each individual laser line

LED display advises low energy level in advance
