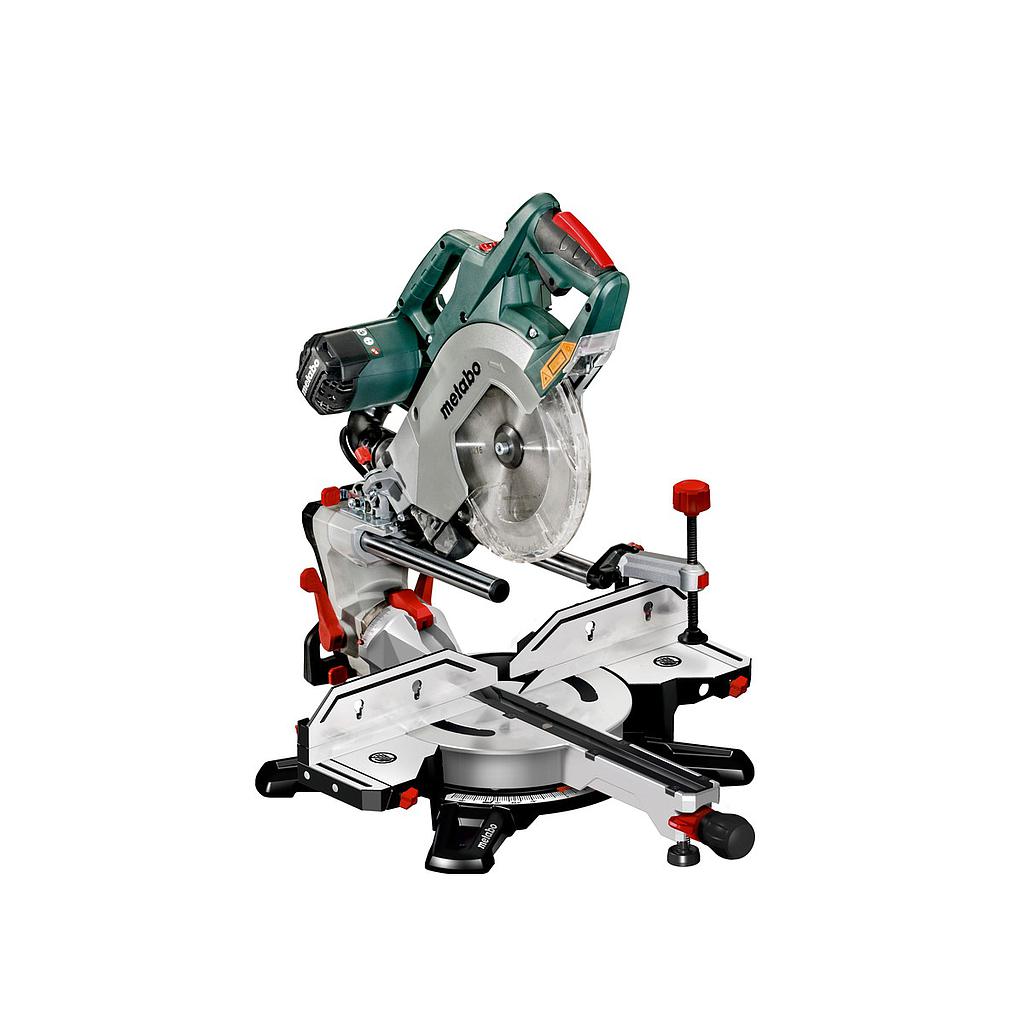

METABO KGSV 72 XACT 角锯 (220-240 V,50-60 Hz)

Dimensions: 660 x 540 x 415 mm / 26 x 21 1/4 x 16 11/32 "

Maximum cutting width 90°/45°: 305 / 215 mm // 12 / 8 15/32 "

Maximum cutting depth at 90°/45°: 72 / 42 mm // 2 27/32 / 1 21/32 "

Cutting capacity 90°/90°: 305 x 72 mm / 12 x 2 27/32 "

Cutting capacity 45°/45°: 215 x 42 mm / 8 15/32 x 1 21/32 "

Turntable setting left/right: 50 / 50 °

Saw blade tilt left/right: 47 / 47 °

Saw blade: 216 mm / 8 1/2 "

Rated input power S1 100%: 1500 W

Rated input power S6 20%: 1800 W

No-load speed: 2200 - 6300 rpm

Cutting speed: 25 - 70 m/s // 82 - 229 ft/s

Weight: 16.1 kg

Cable length: 3 m / 9.75 ft


Delivery

Carbide saw blade (40 teeth)

Tool for saw blade change

Cable winder

2 x Table length extensions

Material clamp

Accessories

SAWING

Circular saw blades, Other accessories for semi-stationary/stationary circular saws, Further accessories for crosscut and mitre saws, Further accessories for band saws, Other accessories for semi-stationary/stationary saws

OTHER ACCESSORIES

COccupational safety

Details


Datasheet


Features

Compact traction function for wide workpieces up to 305 mm: no space required behind the saw

Maximum flexibility when sawing thanks to rotating table and inclinable saw head on both sides

Double line laser for precise display of the cutting line left and right of the saw blade

Speed control for extended range of application, e.g. for cutting of aluminium profiles and plastics

Compact light-weight with ergonomically designed carry handles, ideal for mobile use

Effective dust extraction via integrated dust scoop

Fast and precise setting of common angles using stop points

Bright LED work light for illumination of the cutting line (mains powered, no batteries required)

Sliding high rear fence profiles for safe sawing

Depth guide for easy creation of grooves

Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required
