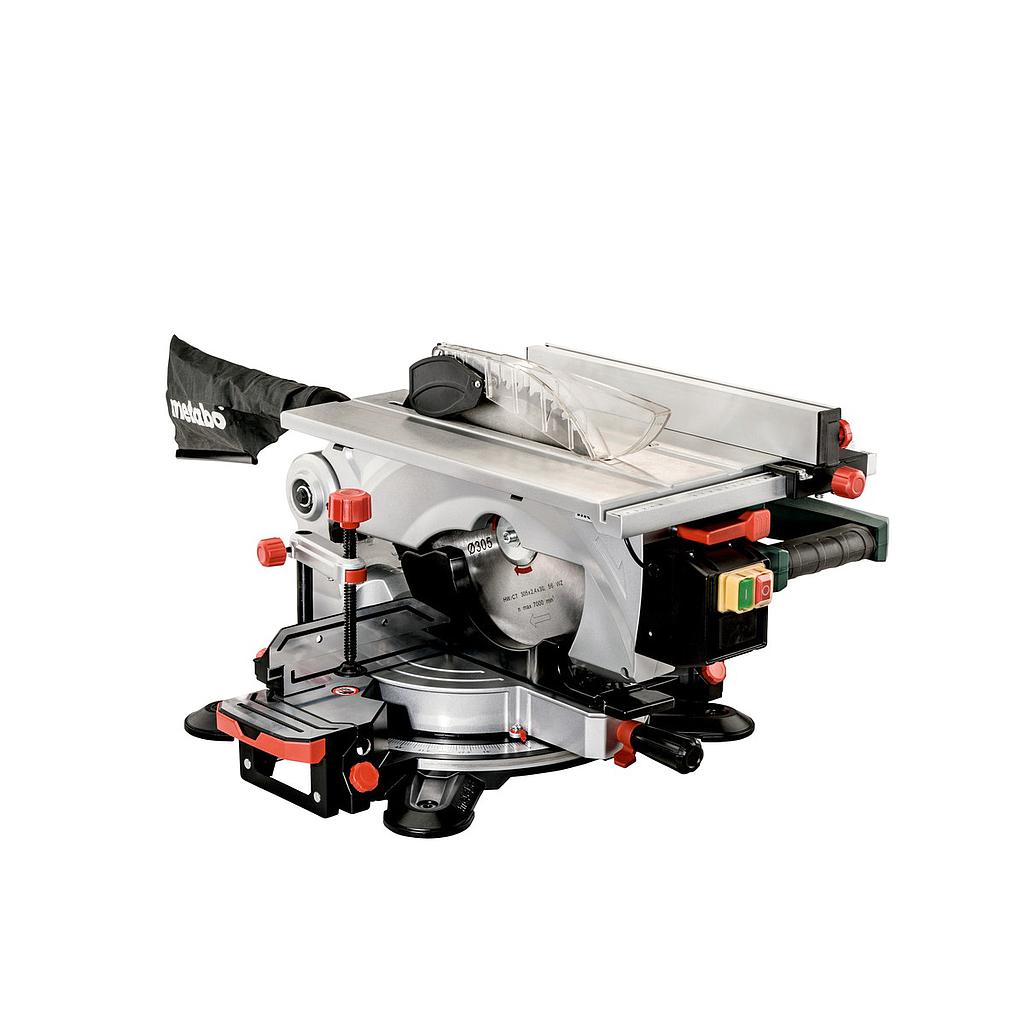

METABO KGT 305 M Crosscut and Table Saw (230-240 V / 50-60 Hz)

Dimensions: 658 x 600 x 460 mm

Table size: 462 x 261 mm

Cutting height – table mode: 0 - 50 mm

Cutting width - cross cutting mode 90/45°: 150 / 100 mm

Cutting depth - cross cutting mode 90/45°: 102 / 70 mm

Cutting capacity 90°/90°: 150 x 102 mm

Cutting capacity 45°/45°: 115 x 45 mm

Turntable setting left/right: 52 / 52 °

Saw blade tilt left/right: 47 / 2 °

Rated input power: 1600 W

No-load speed: 3700 rpm

Revolutions at rated load: 2750 rpm

Max. cutting speed: 60 m/s / 197 ft/s

Saw blade: 305 x 30 mm

Weight: 22 kg

Cable length: 2.8 m

Noise emission

Sound pressure level: 95 dB(A)

Sound power level (LwA): 98 dB(A)

Uncertainty of measurement K: 3 dB(A)


Delivery

Carbide saw blade (56 teeth)

Length Guide

Material clamp

Chip Collection Bag

Tool for saw blade change

Push stick

2 x Table length extensions

Parallel Guide / Rip Fence

Accessories

SAWING

Circular saw blades, Further accessories for crosscut and mitre saws, Other accessories for semi-stationary/stationary saws

OTHER ACCESSORIES

Occupational safety

Detail

Datasheet


Features

Cross-cut and mitre saw with additional table circular saw function for straight cuts

Quick changeover from crosscut to table operation

Compact light-weight saw, ideal for mobile use

Easy transport by means of saw head lock

Robust die-cast aluminium design for the highest demands

Fast and precise setting of common angles using stop points

Laser for exact display of the cutting line (mains powered, no batteries required)

Adjustable and extendable table width extensions, removable to put long panels, slabs etc. underneath

Bright LED work light for illumination of the cutting line (mains powered, no batteries required)

Sliding high rear fence profiles for safe sawing

Material clamp for secure fixing of the work piece from the top or front

Restart protection: prevents unintentional start-up after power supply interruption

Saw head can be inclined to the left, with additional angle range for undercuts

All scales and operating elements are visible from the working position and can be operated intuitively

Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required
