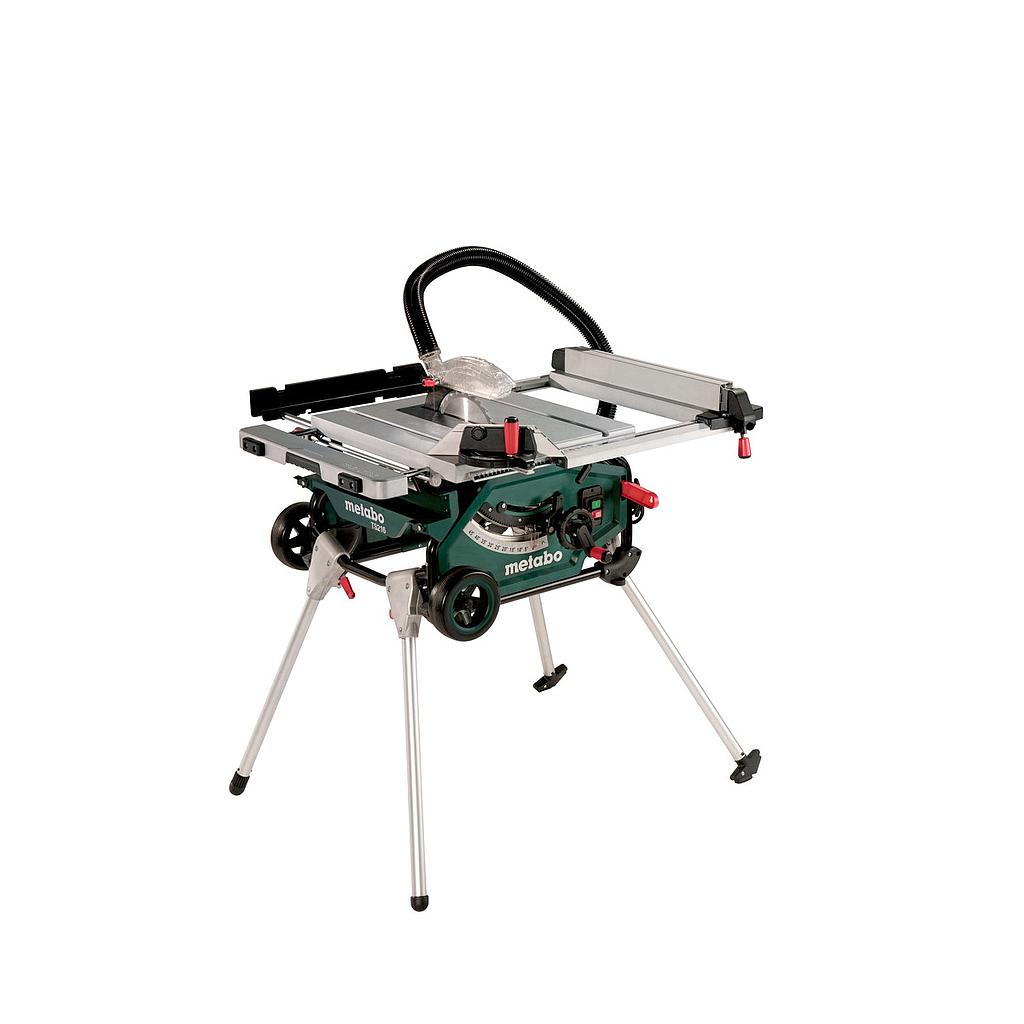

METABO TS 216 台式锯机 (220-240 V / 50-60 Hz)

  • 制造商: METABO
    Model: TS 216
    P/N: 600667000
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Dimensions: 670 x 730 x 355 mm / 2.2 x 2.4 x 2.1 ft

Max. support surface: 780 x 930 mm / 30 1/2 x 36 1/2 "

Working height: 850 / 355 mm // 33 1/2 / 14 "

Cutting height: 0 - 63 mm // 0 - 2 1/2 "

Maximum cutting height 90/45°: 63 / 43 mm // 2 1/2 / 1 11/16 "

Maximum cutting width at parallel guide/rip fence: 425 mm / 16 3/4 "

Maximum material width at mitre fence: 165 mm / 6 1/2 "

No-load speed: 5000 rpm

Cutting speed: 57 m/s / 187 ft/s

Saw blade: 216 x 30 mm / 8 1/2 x 1.181 "

Saw blade swivel range: -1.5 - 46.5 °

Rated input power: 1500 W

Weight: 28.5 kg / 62.8 lbs kg

Cable length: 3 m / 10 ft

Noise emission

Sound pressure level: 89 dB(A)

Sound power level (LwA): 102 dB(A)

Uncertainty of measurement K: 3 dB(A)


Delivery

Carbide saw blade with alternately bevel-ground tips (30 teeth)

Parallel Guide / Rip Fence

Mitre Fence

Table Length Extension

Table width extension (left)

Table width extension (right)

Chip and Dust Extraction Unit

Push stick

Stand

Hard rubber tyres

Accessories

SAWING

Circular saw blades, Other accessories for semi-stationary/stationary saws

OTHER ACCESSORIES

Occupational safety

Details

Datasheet


Features

Lightest table saw with trolley function, also suitable for one-handed transport

Integrated stand made from stable die-cast aluminium (patented): unfolded in a matter of seconds with secure stand

Very compact with folded stand for comfortable transport and space-saving storage

Second working height for working near ground level

Anti-twist tubular frame construction for highest demands on the building site and during installations

Cables and all add-on components for transport can be stored on the casing

Powerful motor with electronic overload protection

Motor brake for quick stop of the saw blade in 3 seconds

Restart protection: prevents unintentional start-up after power supply interruption

Soft start for long service life of motor and drive

Precise parallel guide with double clamping and quick fastening

Precise saw blade inclination via gear guide

Automatic resetting to 0 – 45 ° after undercuts

Easy saw blade change with spindle lock

Splitting wedge can be lowered without tools for hidden cuts and transport

Precise, extendable table width extension for extra large working surfaces

Dual port dust extraction for low dust emission
