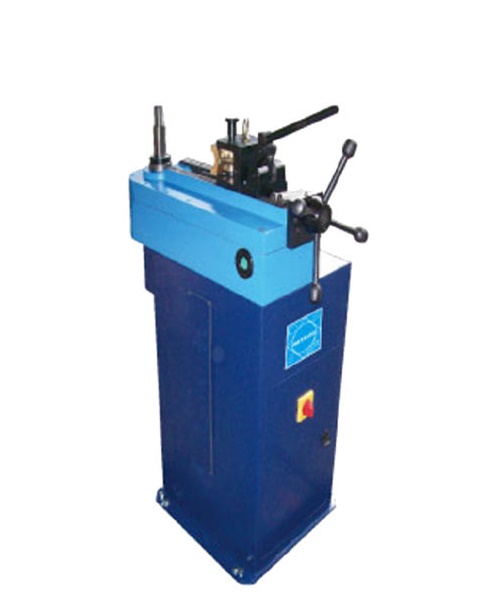

METALEX BM-70A 电子弯管机 (3(4)times x Ø)

Hard and soft copper pipes, annealed brass pipes(mm): Diameter ≤ 64; Thickness ≤ 4

Steel pipe for electricity plants(mm): Diameter ≤ 60; Thickness ≤ 2

Stainless steel AISI 304/316 pipes(mm): Diameter ≤ 60; Thickness ≤ 3

Hydraulic steel tubes ST, 35.4(mm):Diameter ≤ 60; Thickness ≤ 4

Furniture tubes(mm): Diameter ≤ 60; Thickness ≤ 3

FE boiler pipes(mm): Diameter ≤ 60; Thickness ≤ 4

Aluminum pipes(mm): Diameter ≤ 60; Thickness ≤ 8

Gas pipes UNI 5745(inch): Diameter ≤2”; Thickness: Standard

Standard centreline bending radius(mm): 3 or 4 times x Ø

Motor power(kw/v): 1.5/2.2kw/220V (415V)

Dimensions (L x W x H)(mm): 810x515x1100

Weight (nt) (kgs): 210
