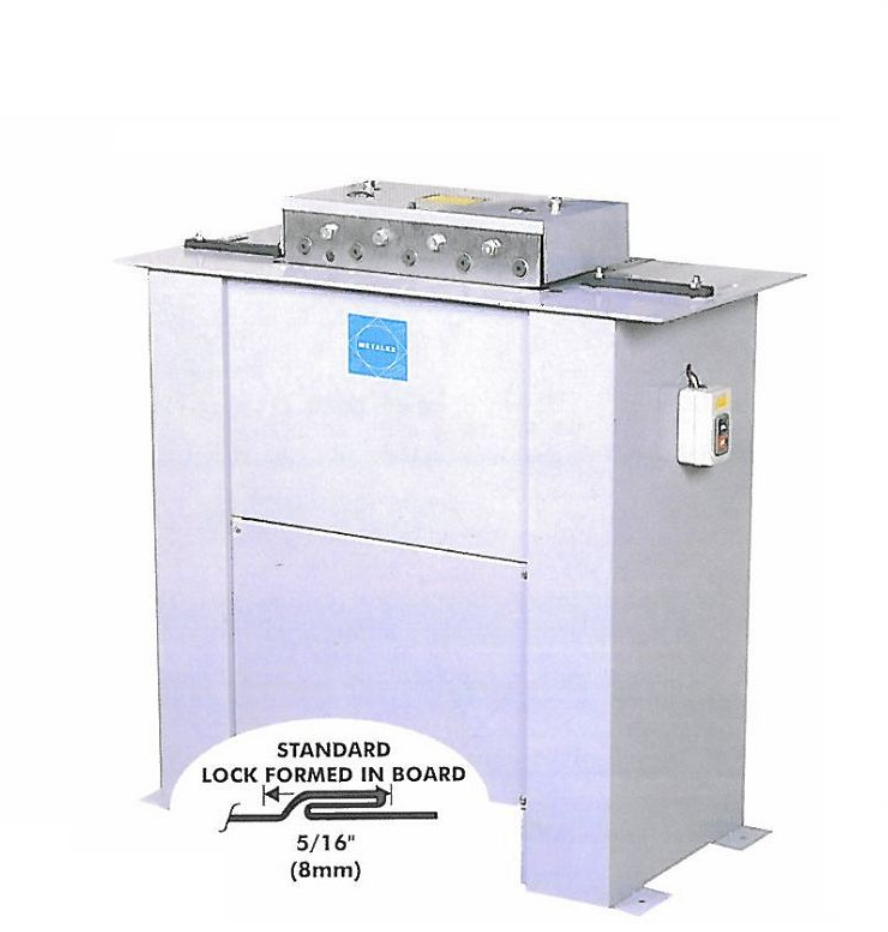

METALEX FBB-20 Lock-forming Machine (25 mm)

Capacity: Approx. 25 mm (1") of material 0.5-1.0 mm (20-26 GA)

Depth of pocket: 8 mm (5/16") width of hammer-over edge adjustable up to 9.5 mm (3/8")

Speed: 25 feet /76.2 meter per minute

Motor: AC Motor 1 HP-3Phase - Manual switch

Drive: V-belt

Overall height: 812.8 mm (32")

Overall dimension: 914 mm (36") L x 419 mm (16-1/2") W x 927 mm (36-1/2") H

Weight: 150 kgs (330 lbs)
