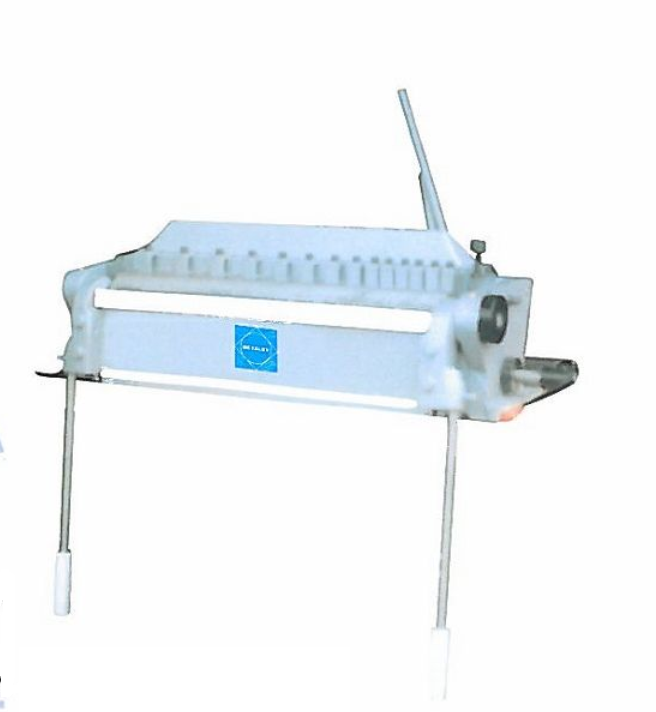

METALEX FK-U3616 万能弯曲机 (914 mm)

Bending length: 914 mm (36")

Capacity mild steel: 1.6 mm (16 GA)

Maximum deep of box: 19 mm (3/4")

Finger width: 25/50/75/100/125/160 (1, 2, 3, 4, 5, 6")

Maximum lift of beam: 75 mm (3")

Weight: 165 kgs (363lbs)

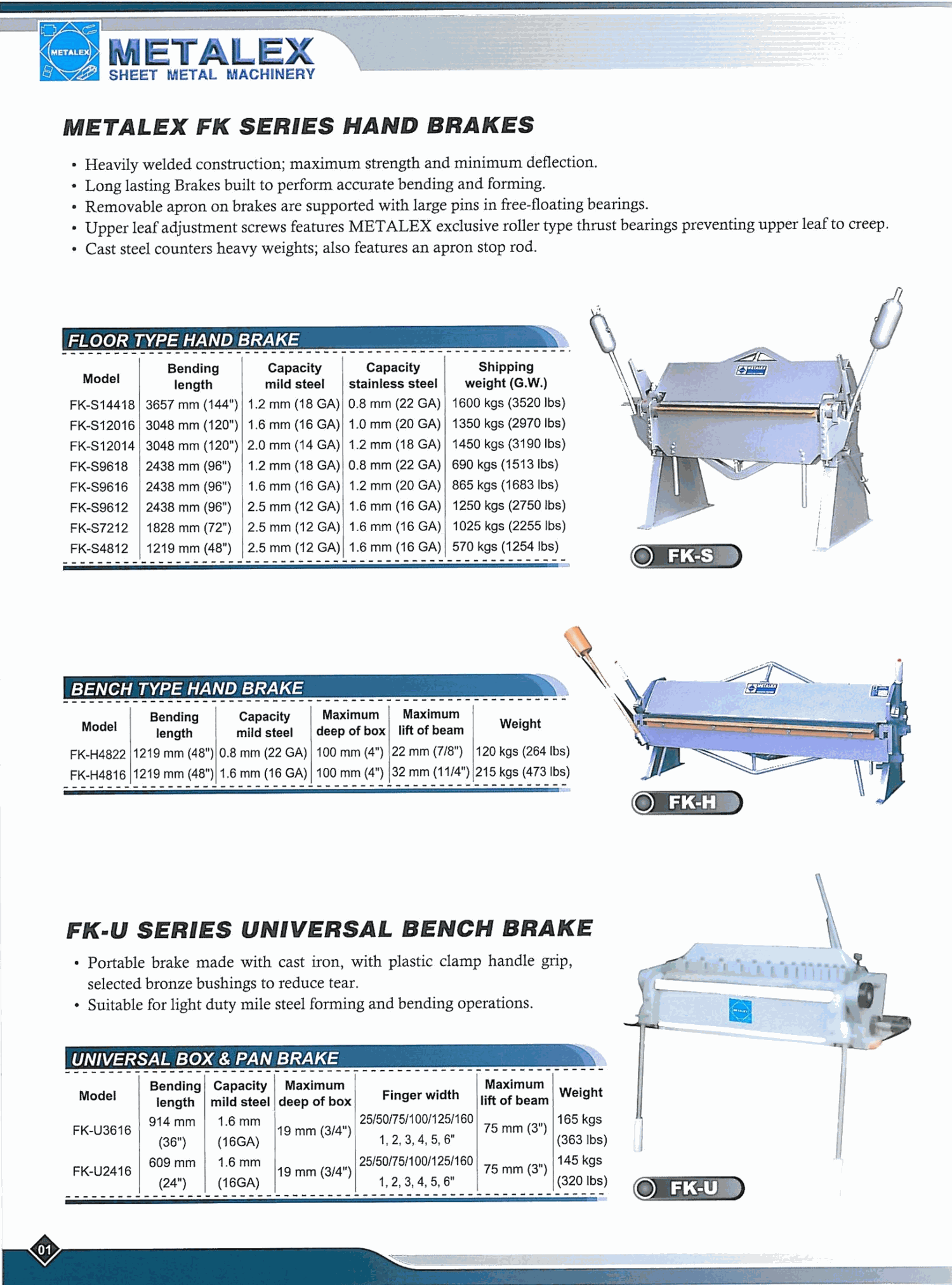

Datasheet
