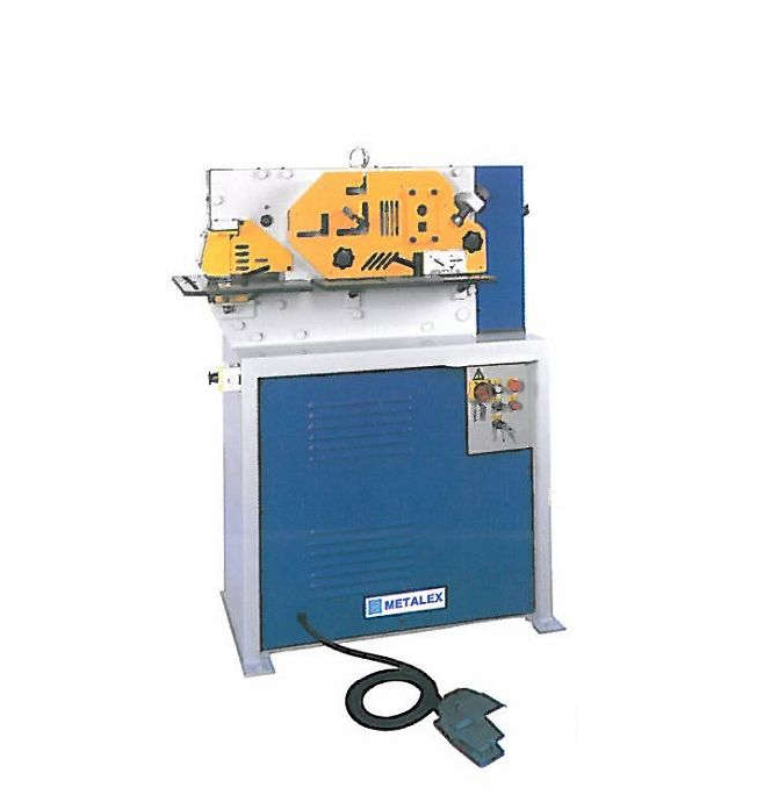

METALEX HIW-40 Hydraulic Ironworker

Punching

- Rated capacity: 40 T

- Maximum capacity: 20 x 15 mm

- Diameterxthickness: 38 x 8 mm

- Stroke length: 32 mm

- Speed - 20 mm travel: 20 cycles/min

- Throat size (standard): 175 mm

- Deep throat: -

- Largest hole (optional): 57 mm

- Max. Section flange punch: -

- Working height: 1075 mm

Shearing

- Flat Bar - max. thickness: 200 x 13 mm

- Flat bar - max. width: 350 x 6 mm

- Angle Iron trim: 80 x 10 mm

- Working height: 1075 mm

Angle Cutting

- 90° cut: 80 x 8 mm

- 45° Mitre cut: 50 x 6 mm

- Working height: 1210 mm

Section Cutting

- Round / Square bar: 30/25 mm

- Channel / Beam (optional): 76 x 38 mm

- Tee (optional): 38 x 6 mm

- Working height: 1140 mm

Notching

- Material thickness: -

- Width: -

- Depth vee (optional) / Rectangular: -

- Angle flange: -

- Working height: -

Techinical

- Motor: 5 Hp

- Net weight / Gross weight: 570/640 kg

- Machine dimension: 106 x 55 x 148 cm

- Packing dimension: 122 x 64 x 169 cm
