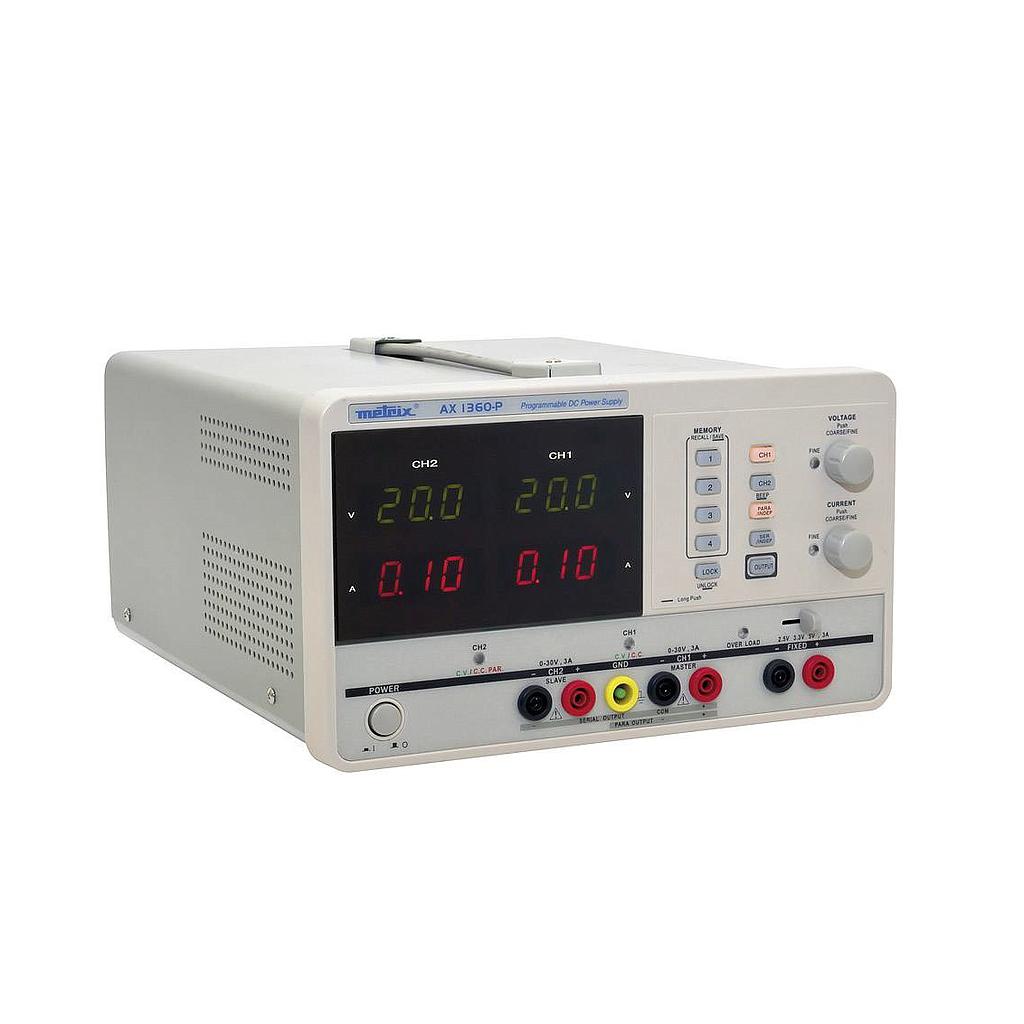

METRIX AX 1360-P 可编程控制电源 (30VDC/5A, 3 CH)

- Number of outputs : 3
- Voltage control
+ Output 1 : 0 – 30 V
+ Output 2 : 0 – 30 V
+ Output 3 : 2.5 V / 3.3 V / 5 V
- Điều chỉnh dòng điện
+  Ngõ ra số 1 : 5 A (independent)/ 6A (parallel)
+  Ngõ ra số 2 : 5 A (independent)/ 10A (parallel)
+   Ngõ ra 3 : 5 A ( independent)
- Accuracy
+ Voltage     ±(0.5 % reading + 2 digits)
+ Current     ±(0.5 % reading + 5 digits)
- Resolution
+ Voltage :10 mV (0 to 9.99 V) – 100 mV (10 to 30 V)
+ Current :10 A
- Ripple and noise
+ Voltage     < 1 mV RMS
- Temp. Coeficient
+ Voltage: < 300 ppm/°C
- On-load: Independent and parallel
+ Voltage control : < 0.1 % + 5 mV
+  Current control : < 0.2 % + 3 mA
- Protection
+  Short-circuits : Current limitation and visual indicated by red LED
+ Overcurrent : Fuse
- " Save/Recall" function
+ No. of stored configurations     4
- TECHNICAL SPECIFICATIONS
+ Display :Digital with LEDs – Simultaneous voltage and current in colour
+ Current and voltage adjustment :Output 1 and 2 by potentiometers, Output 3 by switch
+ Interface / Software :USB / Drivers LV and LW
+  Mains power source :220 V / 50 Hz – 60 Hz
+ Safety / Protection :IEC 61010-1 / Fuse
+ Mechanical specifications : Dimensions: 310 x 250 x 150 mm – Weight: 7.5 kg


State at delivery: 1  programmable  power  supply, 1  power  cable,  1  USB  cable, software  on  CD  Rom  and  an Operating Manual.

Details

datasheet
user guider

AX 1360-P Programmable Controlled Power Supply

Performance and Simplicity at the Best Price!


Programmable controlled power supplies are widely used in Research and Development and Test laboratories, electrical and electronic product manufacturing, education, etc.
The AX 1360-P  is simple to use, allowing you to change from series to parallel connection by simple selection, without moving any leads. The power supply then switches automatically between the 2 modes.
  • 2 adjustable output (0-30V) and 1 selectable fixed output (2.5V/ 3.3V/ 5V) Máy cấp nguồn đa năng AX 1360-P la thiết bị thí nghiệm thích hợp cho công tác giáo dục & đào tạo kỹ thuật, nghiên cứu & phát triển sản phẩm
  • Bright 3-digit colour display of currents and voltages simultaneously
  • Simpler use thanks to cordless series or parallel connection
  • Faster work with 4 stored configurations available for recall on front panel
  • High stability and low drift over time in all modes
  • Ventilator control according to power output
  • USB communication
