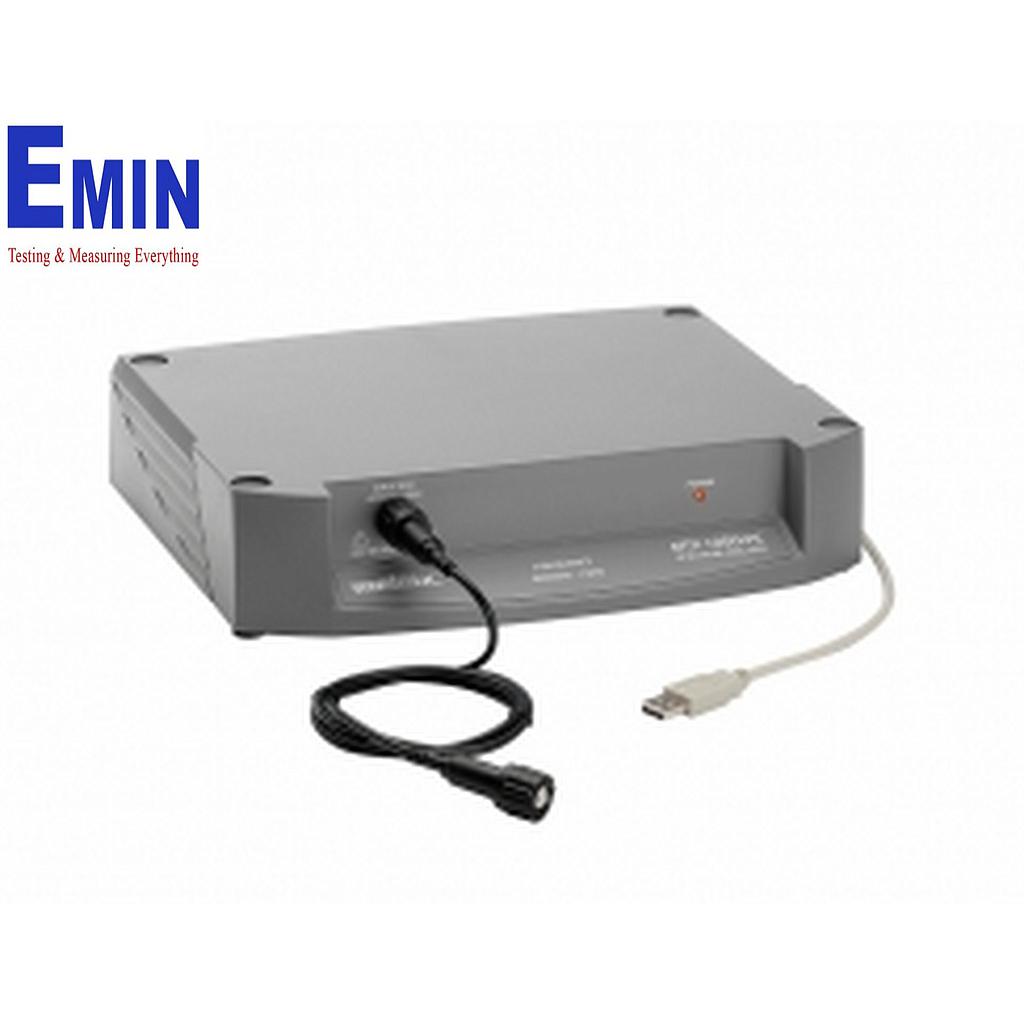

METRIX MTX 1050 频谱分析仪 (400 kHz - 1 GHz)

Hãng sản xuất : Metrix
Model: MTX 1050
Bảo hành : 12 tháng


Details

datasheet
user guider

Description

The MTX 1050 is a particularly compact and economical "screenless" instrument. Lightweight, portable and suitable for general-purpose applications, the MTX 1050 is perfect for small businesses and for technical education (engineering schools, institutes of technology, technical high schools, etc.).
When it is hooked up to HX0082 & HX0083 near-field probes, the MTX 1050-PC can also be used for EMC prequalification tests.

Multi-purpose frequency range from 400kHz to 1GHz
High level of stability with ±5ppm/year frequency drift
Large dynamic range for measurement from -990dBm to +220dBm
6 sweep speeds, 3 analysis filters and 3 video filters
EMC testing capability and integrated FM demodulation
High-resolution colour display and large dimensions on PC
Up to 5,000 samples in horizontal resolution
4 simultaneous measurements (auto Peak, Marker, 2 delta cursors)
Windows environment: screenshots in reports, transfers to Excel
Unlimited reference and configuration memories with explicit names
Plug & Play USB connection and multilingual PC software.
