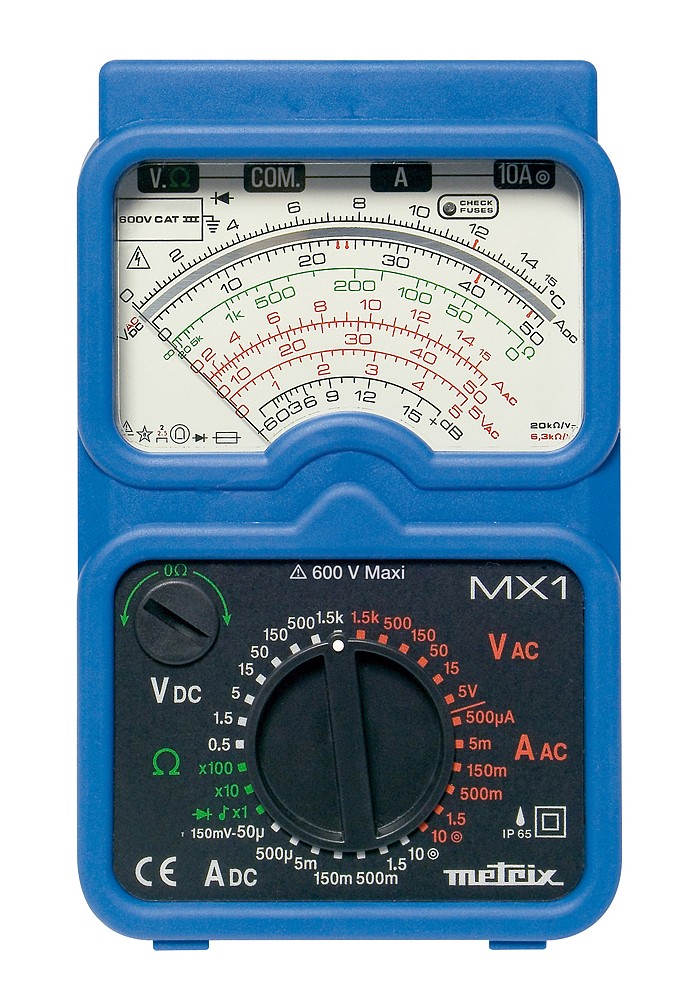

METRIX MX 1 模拟万用表
制造商: METRIX Model: MX 1 P/N: MX1 来源: China 保障: 12 Month - 联系
Technical specifications
- DC Voltage
+ Calibres: 150 mV - 0.5 V - 1.5 V - 5 V - 15 V - 50 V - 150 V - 500 V - 1.5 kV
+ Protection: 320 Veff (cal. ≤ 5 V) - 500 Veff (15 V); 1,000 Veff (50 V) - 1,500 Veff (150 V to 1.5 kV)
+ Accuracy class: 2
+ Input impedance: 6.32 k Ω /V
- AC Voltage
+ Calibres: 5 V - 15 V - 50 V - 150 V - 500 V - 1.5 kV
+ Protection: 320 Veff (cal. ≤ 15 V) - 500 Veff (50 V); 1,000 Veff (150 V) - 1,500 Veff (5,000 V and 1.5 kV)
+ Bandwidth: 16 Hz to 1 kHz (500 Hz / 1,500 V)
+ Accuracy class: 2.5
+ Input impedance: 6.32 k Ω /V
- DC Current
+ Calibres: 50 - 500 µA - 5 - 150 - 500 mA - 1.5 - 10 A
+ Accuracy class: 2
+ Voltage drop: 1.2 V max
+ Protection: 1.6 A and 10 A fuses - 10 kA / 600 Veff
- AC Current
+ Calibres: 500 µA - 5 - 150 - 500 mA - 1.5 - 10 A
+ Accuracy class: 2.5
+ Voltage drop: 1.2 V max
+ Protection: 1.6 A and 10 A fuses - 10 kA / 600 Veff
- Resistance
+ Calibres: x 1 x 10 x 100
+ Middle point: 200 Ω 2 Ω 20 Ω
+ Accuracy class: 2.5
+ Protection: Electronic 400 Veff (5 s) + audible alarm
- Continuity
+ Detection threshold: R < 150 Ω
- OTHER MEASUREMENTS
+ Diode test : yes
+ dB: yes
- General specifications
+ Sealing: IP 65
+ Scale length: 80 mm
+ Safety: IEC EN 61010-1 Edition 2, Cat. III 600 V - Pollution level 2
+ Power supply: 1.5 V battery (AA, R6)
+ Dimensions / weight: 40 x 98 x 150 mm / 420 g
State of delivery: their leads, battery and operating manual.
Description
As rugged and sturdy as a 4x4 vehicle, the MX 1 can stand up to use on any site thanks, in particular, to its rugged, water-resistant moulded casing. It benefits from protection on all its ranges and all the ranges offer a safety alarm when the instruments is used as an ohmeter.
The MX 1 is also available in a hard case.
Specifications:
- DC voltage from 150 mV to 600 V
- Class 2 basic accuracy
- AC voltage from 5 V to 600 V
- Average measurement
- Bandwidth from 16 Hz to 1 kHz
- DC current from 50 µA to 10 A
- AC current from 500 µA to 10 A
- Resistance from 20 kΩ to 2 MΩ
- Continuity with buzzer
- Diode test
- dB from -6 to 66
- Dimensions: 155 x 98 x 40 mm
- Weight: 420g
- IP65 protection
- Use on any installation lower than or equal to CAT III 600 V as per IEC/EN 61010-1 Edition 2
