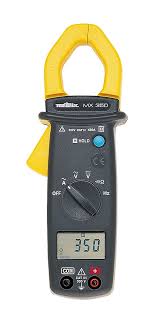

Metrix MX 350电流钳形表(MX0350-Z, 400A)

- Clamping Ø 26 mm
- Display: 4,000 counts
- Bargraph: 42 segments
- Range change: Automatic
- Function keys: HOLD
- IEC 61010-1 and IEC 61010-2-032 safety norms: Cat.III, 300 V - Cat.II, 600 V
- Operating temperature: 0 to 40°C (<70% HR)
- Storage temperature: -10 to 60°C (<80% HR)
- Power supply: 2 x 1.5 V LR03
- Battery charge life: 100 h
- Auto cut-off: 30 min
- Dimensions: 193 x 50 x 28 mm/ Weight: 230 g
TECHNICAL SPECIFICATIONS
- AC current
+ Measuring range: 0.05 to 400.0 A (in 2 calibres)
+ Basic accuracy: 1.9%L + 5D
+ Bandwidth: 50 to 500 Hz
+ Protection: 600 A RMS
- AC voltage
+ Measuring range: 0.5 V to 600 V (in 2 calibres)
+ Basic accuracy: 1.5%L + 5D
+ Bandwidth: 50 Hz to 500 kHz
+ Input impedance: 1 MΩ
+ Protection: 660 VRMS
- DC voltage
+ Measuring range: 0.2 to 600 V (in 2 calibres)
+ Basic accuracy: 1%L + 2D
+ Protection: 660 VRMS
- Resistance
+ Measuring range: 0.2 to 399.9 Ω
+ Basic accuracy: 1%L + 2D
+ Max. open circuit voltage: 1.5 VDC
- Continuity with buzzer
+ Detection threshold: ≤40 Ω
- Frequency
+ Measuring range :Current: 20 Hz to 10.00 kHz (in 2 calibres); Voltage: 2 Hz to 1 MHz (in 4 calibres)
+ Basic accuracy: 0.1%L + 1D
+ Sensitivity: 2-5 A RMS/ 5-10 V RMS


Delivered with carrying bag containing:
a set of measuring leads, a carrying bag, a user's manual and two 1,5 V alkaline batteries

Detail

datasheet
user guider

Description

With all the essential functions (AC and DC voltage, AC current, resistance, frequency and continuity), the MX 350 multimeter clamp is easy to grip and has a particularly readable display. It enables the frequency to be measured for current (up to 10 kHz) and voltage (up to 1 MHz).


MX350, specifications:

  • 4,000-count display
  • 42-segment bargraph
  • Clamping diameter: 26 mm
  • AC current: 40.00 A / 400.0 A
  • AC voltage :400.0 V / 600 V
  • DC voltage: 400.0 V / 600 V
  • Frequency: 10 kHz (A) / 1 MHz (V)
  • Resistance: 400.0 Ω
  • Audible continuity test, diode test
  • Function: HOLD
  • Safety: EN61010 CAT III 300 V
