MicroDigital iSBS Full Package 样品保管系统

Full Package

- Sample Bank Management Software (SBMS)

- Label printer

- Label and ink bundle

- 2D barcode scanner

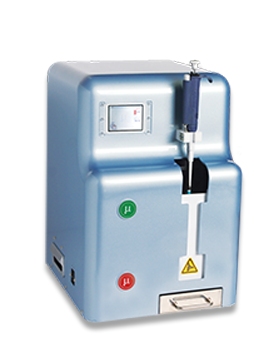

Main Unit

Display: 3.2" TFT Touch Screen

Sealing Technology:

VLSTM (Vacuum-Like Sealing)

EMSTM (Electro-Mechanical Sealing)

Sealing Speed: 500 segments / hour

Life Expectancy: Semi-permanent

Voltage: 110 - 240V / 50 - 60Hz

Power Consumption: Idle: 90 W / Operating : 300 W

Vactube

Vactube Material: Non-DOP polyvinyl chloride

Volume: 1ml or 2ml

Number of Segments: Up to 5 segments

Sterilization: Ethylene oxide gas

Storing Temperature: Up to -86℃

Storage: 30,000 samples / 600 liter freezer

Sample Banking Management

Labeling: Zebra Thermal Printer

Label: 2D Barcode & Reader

Software: SBMS 2.0 (Windows XP/7/8/10)

General

Dimension: 330 x 420 x 480 mm

Weight: 28kg

Ambient Temperature: 18~28℃

Maximum Humidify: 80%
