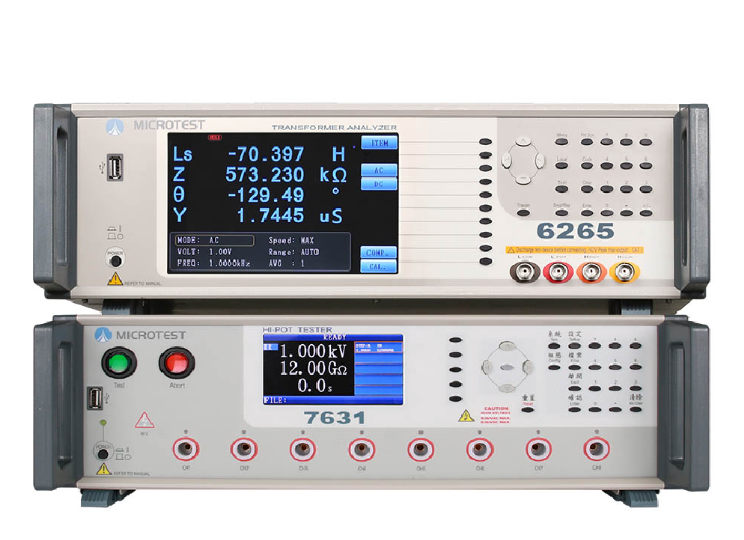

MICROTEST 6265+7631 2 in 1 Comprehensive Transformer Testing System (200kHz, 8CH)

Max. Frequency: 200kHz

Output Voltage:

AC 100V-5000V

DC 10V-6000V

IR 10V-1000Vdc

Parameters Measurement Ranges

 L, LK 0. 1nH ~ 9999.99H

 C 0.00001pF ~ 999.99mF

 Q, D 0.00001 ~ 99999

 Z, X, R 0.00001Ω ~ 99.9999MΩ

 Y 0.01nS ~ 99.9999S

 θ -180°~ +180°

 DCR 0.01mΩ ~ 99.999MΩ

 Turn Ratio:  0.01 ~ 99999.99turns

 Pin-Short:  12 pairs, between pin to pin

Specification

 Built-in stroage:  testing files 128 sets

 Interface: RS-232、Handler、LAN、USB Host、EXT. I/O

 Power Supply: Voltage 90Vac-125Vac or 190Vac-250Vac

 Fequency: 47Hz-63Hz

 Display:  800*480 Color Screen, 7" TFT

 Dimension (W*H*D):  435x145x522 mm

 Weight: 9 kg


7631 Hipot tester

 Channel: 8

 Measurement item: AC/ DC/ IR

 Output Voltage : 100V-5000V /10V-6000V/ 10-1000Vdc

 Resoultion: 1V/ 1V / 1V

 Accuracy:  ±(3% of setting+5V)/  ±(3% of setting+5V)/  ±(3% of setting+5V)

 AC Upper Threshold: 0.001-31mA/ 0.001-11mA / 1-12000MΩ

 AC Arcing Detection: 1-20/ 1-10 -

 Specification:

 Built-in Storage: 30 sets setting files

 Interface : RS-232、Remote、USB Host/Device、EXT. I/O

 Power Supply: Voltage 90Vac-264Vac

 Frequency: 50/60Hz±5%

 Display:  480*272, 4.3" TFT LCD

 Dimension (W*H*D):  435x145x500 mm

 Weight: 15 kg

Standard

‒ Power Cord

‒ User Manual(CD)

‒ HV Test Cable

‒ D-Sub footswitch

‒ Remote Control Cable

‒ Scan Box (F7721)

Optional

‒ PC Link Software

‒ RS-232 cable

‒ Dual Scan Box (F7721-D)
