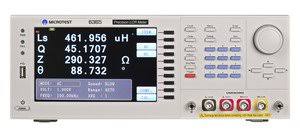

MICROTEST 6367 台式LCR测试仪 (10Hz-1MHz)

Test Frequency: 10Hz-1MHz

Points Of Test Frequency: Continuity

Basic Accuracy: ± 0.08%

AC Drive Level: 10mV to 2Vrms (1m Vrms solution)

DC Drive Level: 0.01V-2V

Output Impedance: 100Ω

Frequency trimming resolution: 5 Digits

Frequency output accuracy: ±0.01%

AC / DC test speed Max.: 8mS

General Specification

Measured Value Detection Mode: Define upper and lower thresholds according to main and sub parameters

ESR: Series/Parallel

Test Mode: Meter mode/Multi-step mode

Test Range: Automatic/Lock

Indicator: Pass/Fail and Built-in speaker

Safety: EN61010-1

Immunity: EN61326-1

Emissions: EN55022 Class A

Calibration: Open Circuit / Short Circuit: Avoid the misreading caused by the stray capacitance from kelvin clips and fixtures

Auto-save when power-off function: When the power is turned off or encounter a power outage, all the data will be saved automatically and recovered when tester system is switched on again

Power Supply:Voltage 90-132Vac or 198-264Vac (selectable)

      : Frequency 47 ~ 63Hz

Display:800*480 Color Screen, 7" TFT

Interface: RS-232, GPIB, Handler, USB

Flash Memory: Built-in flash for storage of 128 groups of Multi-steps setting

Operation: Auto、Manual、RS-232、GPIB、Handler

Temperature : 10°C to 40°C Humidity : 20 ~ 90%

Dimension (W*H*D): 344x145x343 mm

Weight: 3 Kg


Standard Accessories:Power Cord,User Manual,F423501

Optional Accessories:F423503,F423903,F423905
