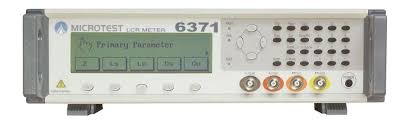

MICROTEST 6371 台式LCR测试仪


- Measurement Parameters
+ |Z| R X: 0.01 mΩ ~ 100.00MΩ
+ |Y| G B: 0.0001nS ~ 1000S
+ Cs Cp: 0.01pF ~ 1F
+ Ls Lp: 0.01uH ~ 100KH
+ D: 0.0001 ~ 9.9999
+ Q: 0.1 ~ 9999.9
+ DCR: 0.01mΩ ~ 100.00MΩ
+ Δ%: -999.99% ~ 999.99%
+ Θ: -180° ~ +180°
- Measurement Speed
+ Fast: 5 measurements per second
+ Medium: 3 measurements per second
+ Slow: 2 measurements per second
- Basic Accuracy: 0.1%
+ Comparator Test Model: Upper and Lower test limits in units and percentage
+ Test Frequency: 100Hz~100KHz in 372 steps
+ AC Test Voltage: 50mV 100mV 250mV 500mV 1V
+ DC Test Voltage: 0.5V
- Bias Voltage: 2V
- Ranging: Auto/Hold
- Trigger: Internal, Manual, External, and Bus
- LCD Display: 240x64 dot-matrix display
- Indicator: PASS, FAIL and BIAS LED indictors internal speaker
- Connections: 4-Terminal BNC Guarded Connections
- Memory: 127 instrument set-up conditions can be saved
- Interface: RS-232port, Handler Interface, GPIB (option)
- Input Voltag 90-132Vac or 198-264Vac(selectable)
- Dimension: 100x340x330mm
- Weight: 5kg
Include: - BNC Kelvin Clips ( F423501)

Details

Option Accessory:

- BNC Kelvin Clips ( F423501) - 200 USD


- BNC Box Kelvin Clips (F423502) - 200 USD


- DIP Component Fixture (F423503) -  262.5 USD


- BNC Kelvin Clips With High Frequency (F423901) - 400 USD


- BNC Box Kelvin Clips With High Frequency (F423902) - 400 USD


- BNC Box SMD Tweezer With High (F423903) - 662.5 USD


- BNC SMD Tweezer With High Frequency (F423904) - 662.5 USD


- SMD Fixture (F423905) - 750 USD


- GPIB Interface  (Option/G) - 735 USD
- Handler Interface  (Option/H) - 625 USD

Download catalog
