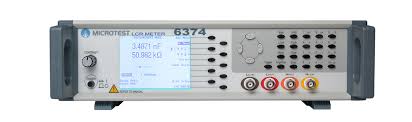

MICROTEST 6374 台式LCR测试仪


- MEasurement parameters:
|Z|,|Y|,θ, R, X, G, B, L, C, Q, D, ESR, DCR measurement

Circuit:Series/Parallel
- Mathematical Functions:
+ absolute/percent deviation
- Test Frequency: 20Hz ~ 100KHz
+ Frequncey Step Resolutin: 5 Digits
+ Frequency Accuracy: ±0.01%
+ Output Impendance: 100Ω
+ AC Drive Level: 10mV 至 2Vrms (1mVrms steps)
- Measurement Range:
+|Z| R X: 0.1 mΩ ~ 100MΩ
+|Y| G B: 10nS ~ 1000S
+ C: 0.01pF ~ >1F
+ L: 0.01nH - 100KH
+ D: 0.00001 ~ 9.9999
+ Q: 0.1 ~ 9999.9
+ Θ: -180° ~ +180°
+ DCR: 0.1mΩ ~ 100MΩ
+ Δ%: -999.99% ~ 999.99%
- Basic Accuracy ±0.1% |Z|,R,X,|Y|,G,B,C,L
- Measurement Time
+ Max: 30mS(DC), 75mS (AC)
+ Fast: 60mS (DC), 150mS (AC)
+ Medium: 120mS (DC), 450mS (AC)
+ Slow : 500mS (DC), 600mS (AC)
- LCD Display: 320*240 dot-matrix display
- Correction:
+ Zero OPEN / SHORT: Eliminates measurement error due to stray parasitc impendances in the test fixtures
- Comparator Fuction
+ High/Pass/Low For each primary measurement parameter and secondary measurement parameter
- Other Functions:
+ Save/Recall: 64 Multi-step files can be saed/recalled from the internal nonvolatile memory
+ Continous Memory Capability: If the instrument is turned off, or if a power failure occurs, instrument setting are automatically memorized
+ Interface: RS-232, GPIB, Handler (option)
Power Requirement: 90~132Vac or 198~264Vac(selectable)
Size: 100x340x330mm
Weight: 6.5kgs
Include: BNC Kelvin Clips F423501


Detail

Option Accessory:

- BNC Kelvin Clips ( F423501) - 200 USD


- BNC Box Kelvin Clips (F423502) - 200 USD


- DIP Component Fixture (F423503) -  262.5 USD


- BNC Kelvin Clips With High Frequency (F423901) - 400 USD


- BNC Box Kelvin Clips With High Frequency (F423902) - 400 USD


- BNC Box SMD Tweezer With High (F423903) - 662.5 USD


- BNC SMD Tweezer With High Frequency (F423904) - 662.5 USD


- SMD Fixture (F423905) - 750 USD


- GPIB Interface  (Option/G) - 735 USD
- Handler Interface  (Option/H) - 625 USD

Download Cataloge
