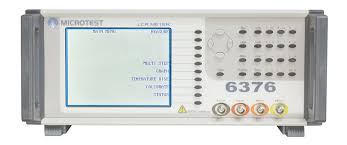

MICROTEST 6376 台式LCR测试仪 (20Hz~500kHz)


Test Frequency:20Hz~500kHz

Points Of Test Frequency:  Continuity

Basic Accuracy:  ± 0.1%

AC Drive Level:  10mV to 2Vrms (1m Vrms solution)

DC Drive Level:  0.01V-2V

Output Impedance:  100Ω

Frequency trimming resolution:  5 Digits

Frequency output accuracy:  ±0.01%

AC test speed Max.:  75mS

DC test speed (Max.): 30mS

DC Bias Current Source: Option (Model 6220)

Measured Value Detection Mode: Define upper and lower thresholds according to main and sub parameters

ESR: Series/Parallel

Mathematical Mode: Absolute/Percentage

Test Range: Automatic/Lock

Indicator: Pass/Fail and Built-in speaker

Safety: EN61010-1

Immunity: EN61326-1

Emissions: EN55022 Class A

Calibration: Open Circuit / Short Circuit: Avoid the misreading caused by the stray capacitance from kelvin clips and fixtures

Auto-save when power-off function: When the power is turned off or encounter a power outage, all the data will be saved automatically and recovered when tester system is switched on again

Power Supply: Voltage 90-132Vac or 198-264Vac (selectable)

       Frequency: 47 ~ 63Hz

Display 800*480 Color Screen, 7" TFT

Interface: RS-232, GPIB, Handler, USB

Flash Memory: Built-in flash for storage of 64 groups of Multi-steps setting (Each group contains up to 30 steps)

Operation: Auto、Manual、RS-232、GPIB、Handler

Temperature : 10°C to 40°C

Humidity : 20 ~ 90%

Dimension (W*H*D):337x145x522  mm

Weight: 6Kg


Standard Accessories :Power Cord,User Manual,F423501

Optional Accessories :Meter Link Software ,RS-232cable,Handler Box,F423905,F423503
