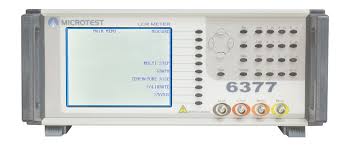

MICROTEST 6377 精密LCR表 (20Hz~1MHz)
制造商: MICROTEST Model: 6377 来源: Taiwan 保障: 12 Month - 联系
Test Frequency: 20Hz~1MHz
Points Of Test Frequency:Continuity
Basic Accuracy: ± 0.1%
AC Drive Level:10mV to 2Vrms (1m Vrms steps)
DC Drive Level:0.01V~2V
Output Impedance:100Ω
Frequency trimming resolution:5 Digits
Frequency output accuracy:± 0.01%
AC test speed (Max.) 75mS
AC test speed (Fast) 150mS
AC test speed (Medium) 450mS
AC test speed (Slow) 600mS
DC test speed (Max.) 30mS
DC test speed (Fast) 60mS
DC test speed (Medium) 120mS
DC test speed (Slow) 500mS
DC Bias Current Source
Option (Model 6220)
Measured Value Detection Mode: Define upper and lower thresholds according to main and sub parameters
ESR: Series/Parallel
Mathematical Mode:Absolute/Percentage
Test Range: Automatic/Lock
Indicator: Pass/Fail and Built-in speaker
Safety: EN61010-1
Immunity: EN61326-1
Emissions: EN55022 Class A
Calibration: Open Circuit / Short Circuit: Avoid the misreading caused by the stray capacitance from kelvin clips and fixtures
Auto-save when power-off function: When the power is turned off or encounter a power outage, all the data will be saved automatically and recovered when tester system is switched on again
Power Supply:Voltage 90-132Vac or 198-264Vac (selectable)
: Frequency 47 ~ 63Hz
Display:320*240 dot-matrix display
Interface: RS-232, GPIB(option), Handler(option)
Flash Memory: Built-in SDRAM for storage of 64 groups of Multi-steps setting (Each group contains up to 30 steps)
Operation: Auto、Manual、RS-232、GPIB(option)、Handler(option)
Temperature : 10°C to 40°C Humidity : 20 ~ 90%
Dimension (W*H*D):340x133x525 mm mm
Weight: 6,5 Kg
