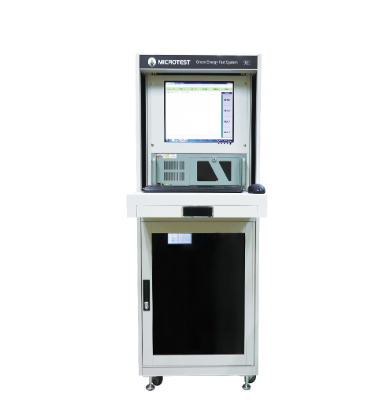

MICROTEST 980 EV Charing Connector Testing System (10V~5000V; 10V~6000V)

High voltage leakage current test:  AC-HI-POT; DC-HI-POT

Voltage range:  10V ~ 5000V; 10V ~ 6000V

Short circuit (leakage current):  0.001mA ~ 31mA; 0.001mA ~ 5mA

Ramp time:  0.1 ~ 999s(0.1 ~ 10s); 0.1 ~ 999s(0.1 ~ 10s)

Maintenance time:  999s

Insulation Resistance

Voltage range:  10V ~ 1000V

IR Range:  100 ~ 500V, 1 ~ 1000MΩ(±5%) 500 ~ 1000V, 2 ~ 12000MΩ(±5%)

Ramp time:  0.1 ~ 999s(0.1 ~ 10s)

Component Test

Resistance: 0.01Ω ~ 20MΩ

Capacitance: 10pF ~ 3µF

Diode: 0 ~ 6.8V

4-wire Test

Conductance: 1mΩ ~ 52Ω

Open/Short: 2kΩ ~ 100kΩ
