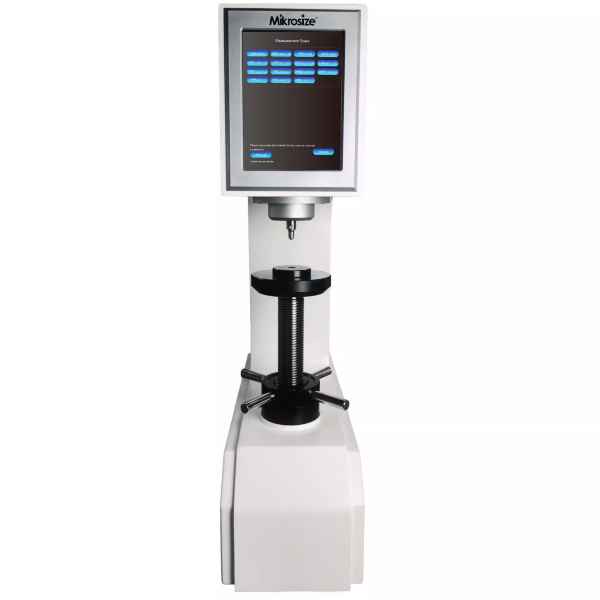

Mikrosize uRocky-45WL 数字式表面洛氏硬度计 (3.0Kgf/29.4N, 45kgf/441.3N, < 1%)

Loading Method: Weights Loading

Initial Test Torce: 3.0Kgf(29.4N)

Main Test Torce: 15kgf(147.1N)     30kgf(294.2N)    45kgf(441.3N)

Hardness Scale: HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X,   HR30X, HR45X, HR15Y, HR30Y, HR45Y

Conversion scale: HRA, HRB, HRC, HRD, HRE, HRF, HV, HBW, HR15N,   HR30N, HR45N, HR15T, HR30T, HR45T

Rockwell Test   Range: HR15N:70-94  HR30N:42-86 HR45N:20-77, HR15T:67-93  HR30T:29-82    HR45TW:10-72

Executive Standards: BSEN 6508, ISO 6508, ASTM E18, GB/T230

Dwell time: 0-99s

Hardness Resolution: 0.1 HR

Error of Test   Force: < 1%

Data Reading: LCD Touch   Screen

Data Output: USB-flash in Excel   Format

Conversion   Scale: Rockwell,   Brinell and Vickers

Test   Height: 220mm

Test   Throat: 200mm

Machine   Dimensions: 560 * 220 * 750   mm

Net Weight: 70kg

Gross Weight   & Packing SizeL: 780x470x940mm   / 90kg

Power   Supply: AC220 + 5%, 50 ~ 60 HZ


Packing list

Diamond Rockwell Indenter: 1

1.5875 mm Ball Indenter: 1

Regulating Screw: 4

150mm Test Anvil: 1

HR15N Hardness Block: 1

55mm Test Anvil: 1

HR30N Hardness Block: 1

40mm V-type Test Anvil: 1

HR30T Hardness Block: 1

Dust-proof Plastic Cover: 1

Power Line: 1

Instruction Manual: 1 Copy

USB Flash Disk: 1

Product Certificate: 1 Copy

Touch Pen: 1

2A Fuse: 2
