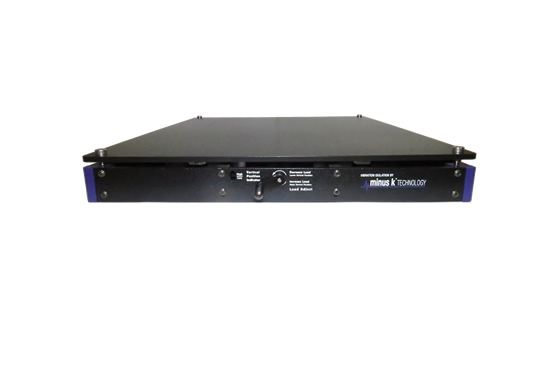

Minus K Technology 100CT-2 超薄低高度台式隔振平台 (68 - 104 lb)

Weight: Approximately 43 lb. (19.6 kg)

Dimensions: 18" W x 20" D x 2.7" H (457mm W x 508mm D x 68.6mm H)

Payload Range: 68 - 104 lb(31 - 47 kg)

Performance:

- Horizontal frequencies are weight dependent.

- Horizontal frequency of ~1.5 Hz is achieved at or near the upper limits of the payload range.

- At the lower payload weights the horizontal frequency will increase.

- Vertical frequency is tunable to 0.5 Hz throughout the payload range.

Details

Datasheet
