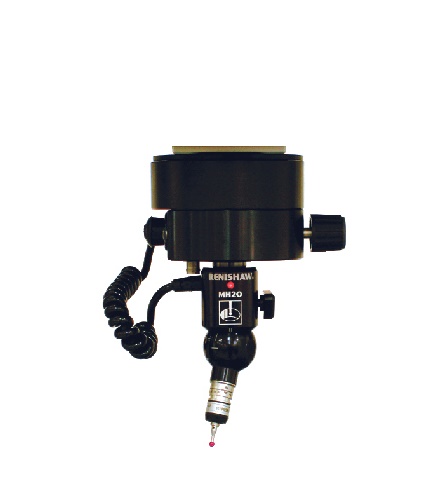

MITUTOYO MH20 触发式测头 (A: ±93º, B: ±300º)

Measuring direction: ±X, ±Y, +Z

Position change: Manually for A axis (vertical direction): ±93º, and for B axis (horizontal direction):  To be fixed to optional direction in range of ±300º

Directionality (XY: 2D): ±0.8 m or less (with the STANDARD FORCE 10mm stylus), ±2.5 m or less (with the 50mm stylus)

Directionality (XYZ: 3D): ±1 m or less (with the STANDARD FORCE 10mm stylus), ±4 m or less (with the 50mm stylus)

Amount of over-travel:

- XY: ±14º

- Z: +4.0mm (STANDARD FORCE); +3.7mm (MEDIUM FORCE); +2.4mm (EXTENDED FORCE)

Maximum stylus length: 50mm (STANDARD FORCE); 60mm (MEDIUM FORCE); 60mm (EXTENDED FORCE)

Stylus mounting method: M2 screw

Mass of a single probe unit: 22g (Probe body: 13g, Probe modulel: 9g)

Durability: 1,000,000 times

Probe head: Essential: PH10M/PH10MQ/MIH/PH1

Applicable models: Manual/CNC coordinate measuring machines

Configuration

MH20

TP20 standard module

Stylus

Cleaning tool

MS2-stylus tool

Stylus

Operation Manual

Certificate

Details

Datasheet
