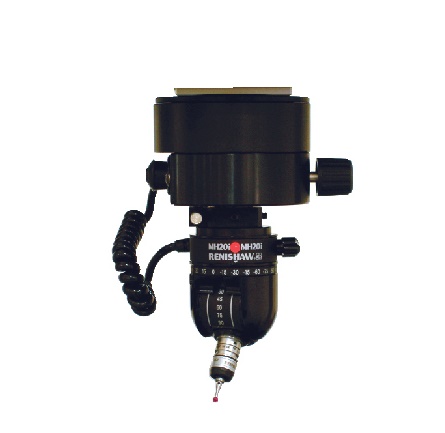

MITUTOYO MH20i Touch-trigger Probe (A: 90º; B: ±180º)

Measuring direction: ±X, ±Y, +Z

Position change:Manually for A axis (vertical direction): 0 to 90º (at 15º increments), and for B axis (horizontal direction): ±180º (at 15º increments)

Directionality (XY: 2D): ±0.8 m or less (with the STANDARD FORCE 10mm stylus), ±2.5 m or less (with the 50mm stylus)

Directionality (XYZ: 3D): ±1 m or less (with the STANDARD FORCE 10mm stylus), ±4 m or less (with the 50mm stylus)

Amount of over-travel:

- XY: ±14º

- Z: +4.0mm (STANDARD FORCE); +3.7mm (MEDIUM FORCE); +2.4mm (EXTENDED FORCE)

Maximum stylus length: 50mm (STANDARD FORCE); 60mm (MEDIUM FORCE); 60mm (EXTENDED FORCE)

Stylus mounting method: M2 screw

Mass of a single probe unit: 250g

Durability: 1,000,000 times

Probe head: Not required

Applicable models: Manual/CNC coordinate measuring machines

Configuration

MH20i

Probe module

Cleaning tool

MS2-stylus tool

Positioning shank

Stylus

Allen key (2mm)

Allen key (3mm)

Operation Manual

Detail

Datasheet
