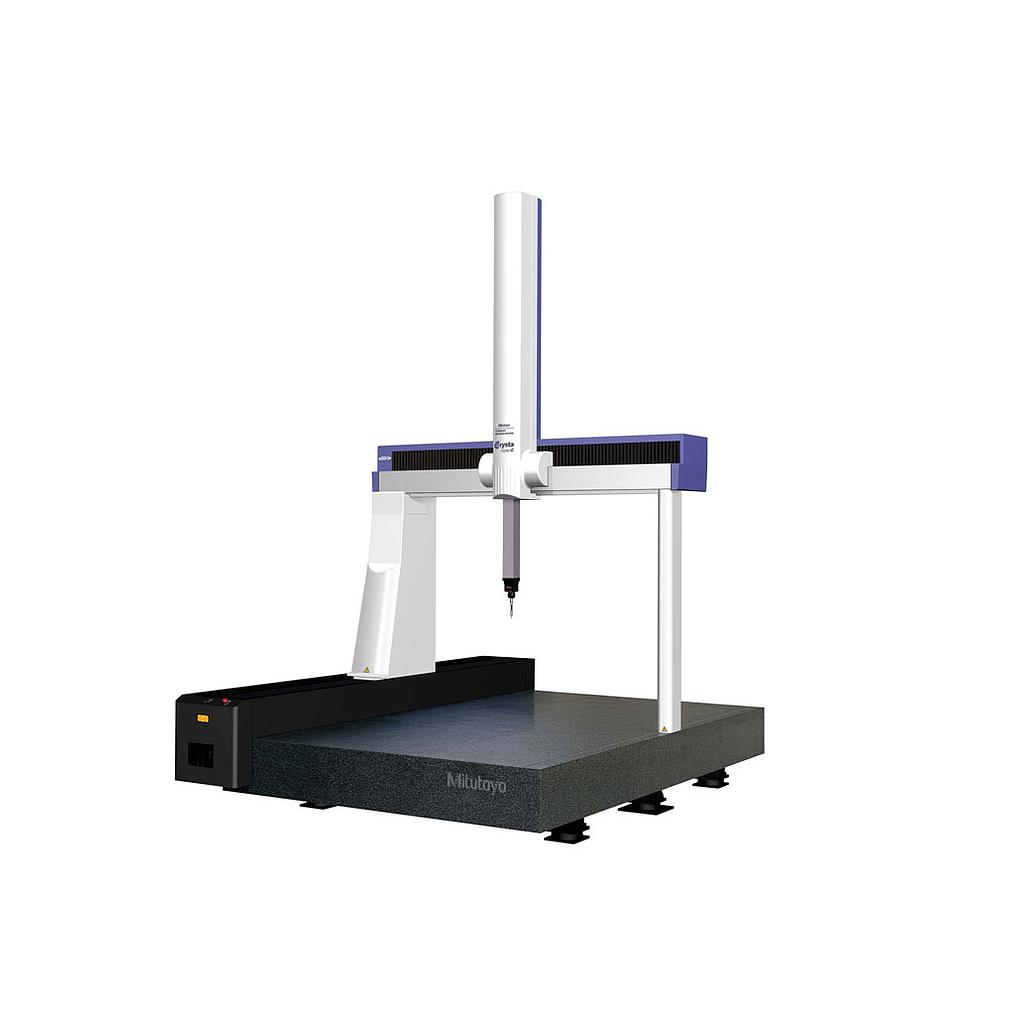

MITUTOYO Crysta-Apex C164016 CNC 坐标测量机 (1600mm 4000mm 1600mm)

Type: Large Bridge Type Standard

X-axis: 62.9" (1600mm)

Y-axis: 157.4" (4000mm)

Z-axis: 62.9" (1600mm)

Resolution: 0.000004" (0.0001mm)

Material: Granite

Work Table Size: 70.86"x204.92" (1800mmx5205mm)

Tapped Insert: M8x1.25mm

Max Workpiece Height: 70.86" (1800mm)

Max Workpiece Weight: 9920lbs (4500kg)

Mass (including stand and controller): 37738lbs (14850kg)

Machine Dimensions WxDxH: 106.29"x220.47"x196.46"(2700mmx5600mmx4990mm)

Length standard: Linear encoder

Guide system: Air bearing

Max. Drive speed (3D): 20.43" (519mm)/second

Max. Acceleration: 0.17G

Air pressure: 0.4MPa

Air consumption: 150L/min
