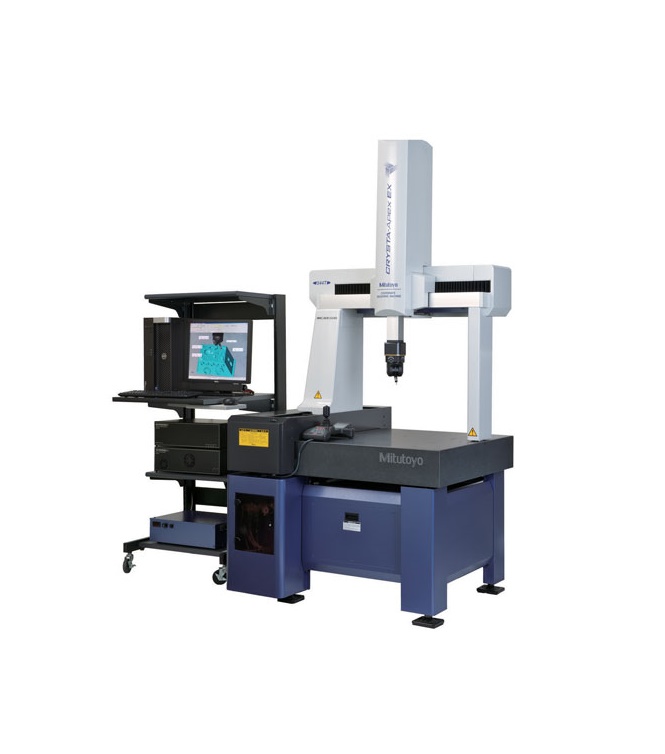

MITUTOYO CRYSTA-Apex EX 9166T 坐标测量机 (900mm, 1600mm, 600mm)
制造商: MITUTOYO Model: CRYSTA-Apex EX 9166T P/N: 191-294-20 - 报价要求
- 联系
Measuring range:
X-axis 900mm
Y-axis 1600mm
Z-axis 600mm
Drive speed
- CNC MODE: Drive speed 8 - 300mm/s; Measuring Speed 1 - 10mm/s
- J/S MODE: 0 - 80mm/s
Resolution: 0.0001mm
Guide method: Air bearings on each axis
Table loading
- Maximum height: 800mm
- Maximum mass: 1500kg
Mass (including the control device and installation platform): 2889kg
Air supply:
- Pressure 0.4MPa
- Consumption: 60 L/min under normal conditions (air supply: 120 L/min)
