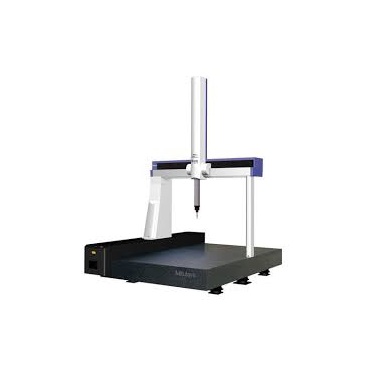

MITUTOYO Crysta-Apex C204016 数控坐标测量机 (2000mm 4000mm 1600mm)
制造商: MITUTOYO Model: Crysta-Apex C204016 P/N: 191-372-2 - 报价要求
- 报价要求
- 联系
Type: Large Bridge Type Standard
X-axis: 78.7" (2000mm)
Y-axis: 157.4" (4000mm)
Z-axis: 62.9" (1600mm)
Resolution: 0.000004" (0.0001mm)
Material: Granite
Work Table Size: 86.61"x204.92" (2200mmx5205mm)
Tapped Insert: M8x1.25mm
Max Workpiece Height: 70.86in 1800mm
Max Workpiece Weight: 11023lbs (5000kg)
Mass (including stand and controller): 42990lbs (19500kg)
Machine Dimensions WxDxH: 122.05"x220.47"x198.42" (3100mmx5600mmx5040mm)
Length standard: Linear encoder
Guide system: Air bearing
Max. Drive speed (3D): 20.43" (519mm)/second
Max. Acceleration: 0.17G
Air pressure: 0.4MPa
Air consumption: 150L/min
