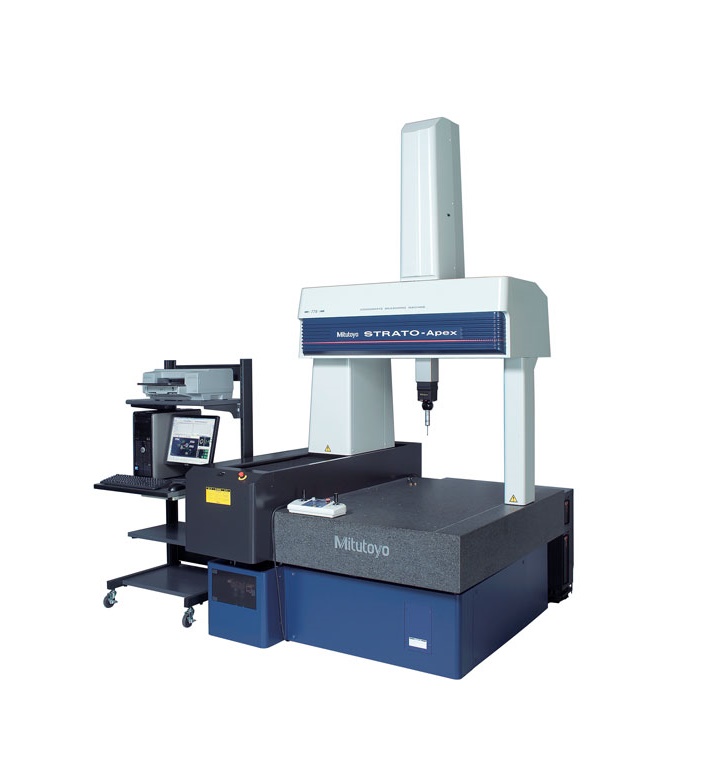

MITUTOYO STRATO-Apex 776 CNC 坐标测量机 (700mm 700mm 600mm)

Type: Moving Bridge Type High Accuracy

X-axis: 27.6" (700mm)

Y-axis: 27.6" (700mm)

Z-axis: 23.6" (600mm)

Resolution: 0.0000008" (0.00002mm)

Material: Granite

Work Table Size: 33.93" x 55.90" (862mm x 1420mm)

Tapped Insert: M8x1.25mm

Max Workpiece Height: 30.31" (770mm)

Max Workpiece Weight: 1102lbs (500kg)

Mass (including stand and controller): 4177lbs (1895kg)

Machine Dimensions WxDxH: 57.48 x 73.22 x 111.41"(1460 x 1860 x 1460mm)
