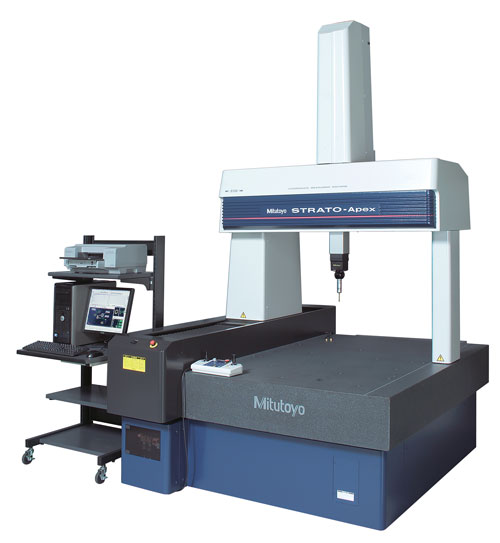

MITUTOYO STRATO-Apex 9166 CNC 坐标测量机 Machine (900mm 1600mm 600mm)

Type: Moving Bridge Type High Accuracy

X-axis: 35.4" (900mm)

Y-axis: 63.0" (1600mm)

Z-axis: 23.6" (600mm)

Resolution: 0.0000008" (0.00002mm)

Material: Granite

Work Table Size: 41.81" x 91.33" (1062mm x 2320)

Tapped Insert: M8x1.25mm

Max Workpiece Height: 30.31" (770mm)

Max Workpiece Weight: 2645lbs (1200kg)

Mass (including stand and controller): 6801lbs (3085kg)

Machine Dimensions WxDxH: 65.35 x 108.66 x 111.41" (1660 x 2760 x 1660mm)
