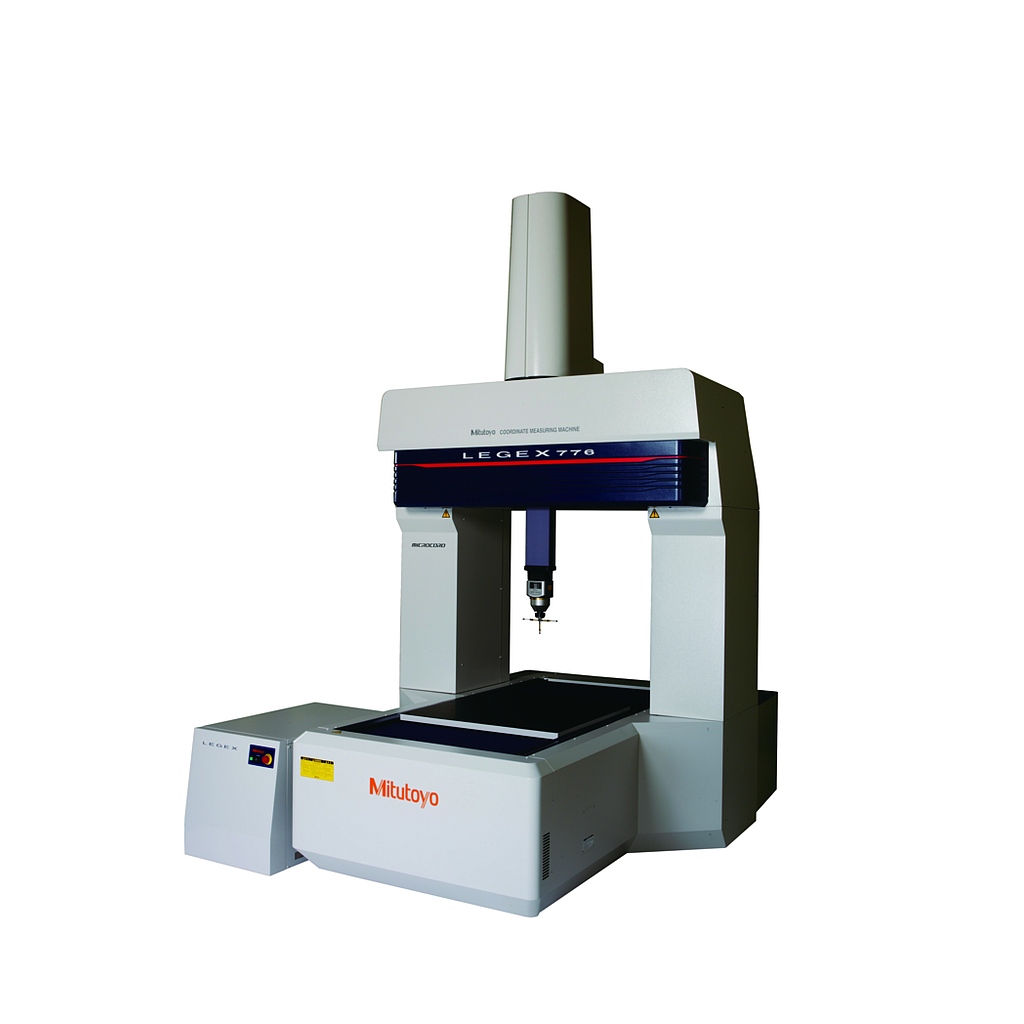

MITUTOYO LEGEX 776 坐标测量机 (700mm, 700mm, 600mm)

Measuring range:

X-axis 700mm

Y-axis 700mm

Z-axis 600mm

Measurement method: Ultrahigh-precision linear encoder

Maximum measuring speed: 200mm/s

Maximum acceleration: 980mm/s2

Resolution: 0.00001mm

Guide method: Air bearing

Measuring table

- Material: Cast iron

- Size: 750×750mm

- Tapped insert: M8×1.25mm (for workpiece clamping)

Table loading

- Maximum workpiece height: 860mm

- Maximum Table loading: 500kg

Mass (main unit): 5100kg

Air supply

- Pressure: 0.5 MPa

- Consumption: 120L/min under normal conditions (air source: 160L/min or more)
