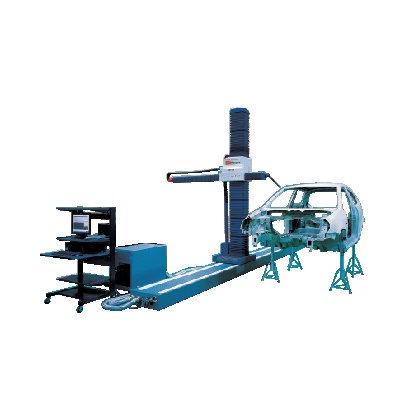

MITUTOYO CARBapex CNC 坐标测量机 (6000mm 16000mm 2400mm)

Type: Large Horizontal Arm High Precision

X-Axis Range: 0-236.22in 0-6000mm

Y-Axis Range: 0-62.99in 0-1600mm

Z-Axis Range: 0-94.49in 0-2400mm

Resolution: 0.0000039”(0.0001mm)

Accuracy:

- Single 25+28L/1000≤95µm

- Dual 50+35L/1000≤120µm

Dimensions: 144.54x163.19x275.59in 3666x4145x7000mm
