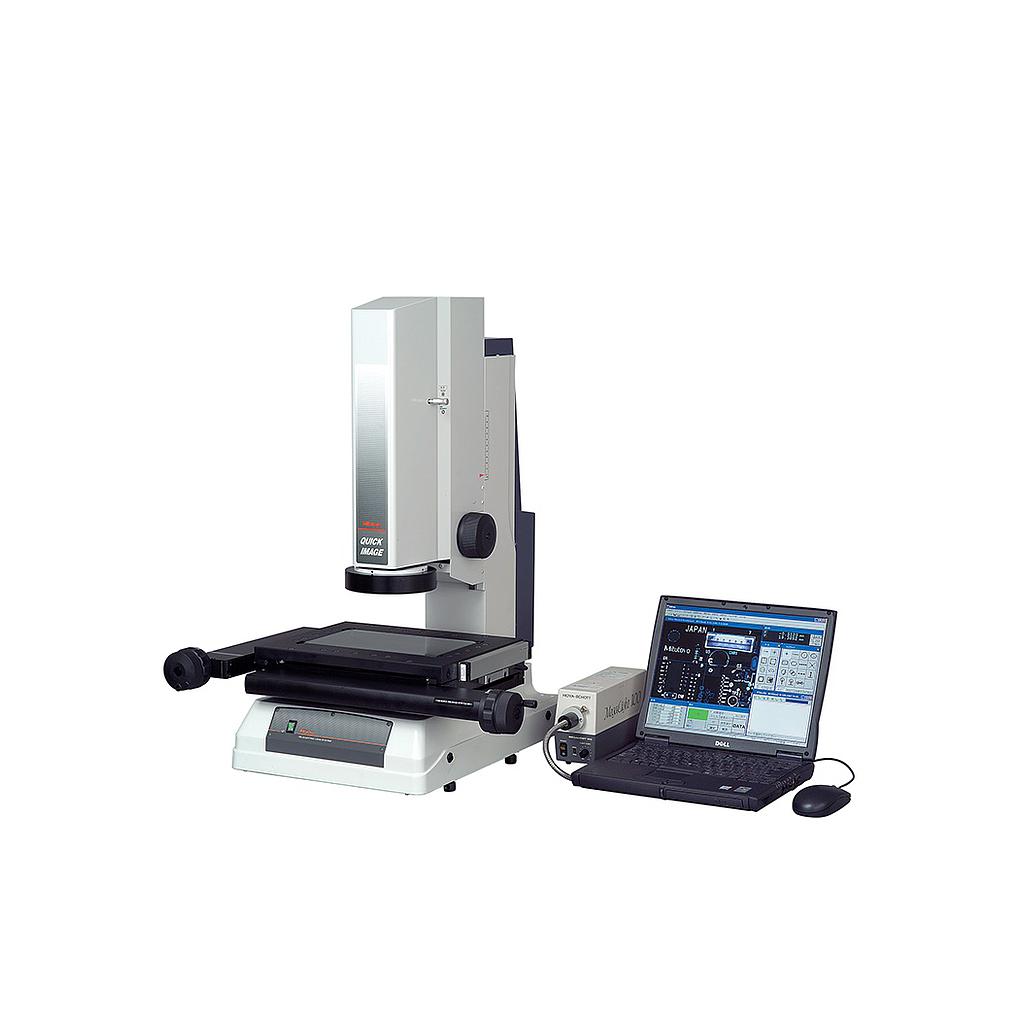

MITUTOYO QI-A3017C 测量影像仪 (300x170mm)

X,Y-axis: 300x170mm(12inx7in)

Z-axis: 100mm (4in)

Measuring mode: High-resolution mode and Normal mode

Accuracy(on monitor):  2µm (high-resolution mode), ±4µm (normal mode)

Measuring accuracy (U1XY): ±(3.5+0.02L)µm L = measuring length (mm)

Repeatability:  1µm (high-resolution mode), ±2µm (normal mode)

CCD Camera: 3 Megapixels,1/2 inch color CCD camera

Optical system: Magnification- 0.2X, double telecentric system

Working distance-90mm

Depth of focus-±0.6mm (high-resolution mode), ±11mm (normal mode)

Illumination: Contour Surface 4-quadrant LED

Stage glass size: 14x9in 360x230mm

Max.loading: 20kg 44lbs

Mass: 326lbs 148kg

Optional accessories

Holder with clamp

V-block with clamp

Swivel center support

Stage adapter sets

Foot switch
