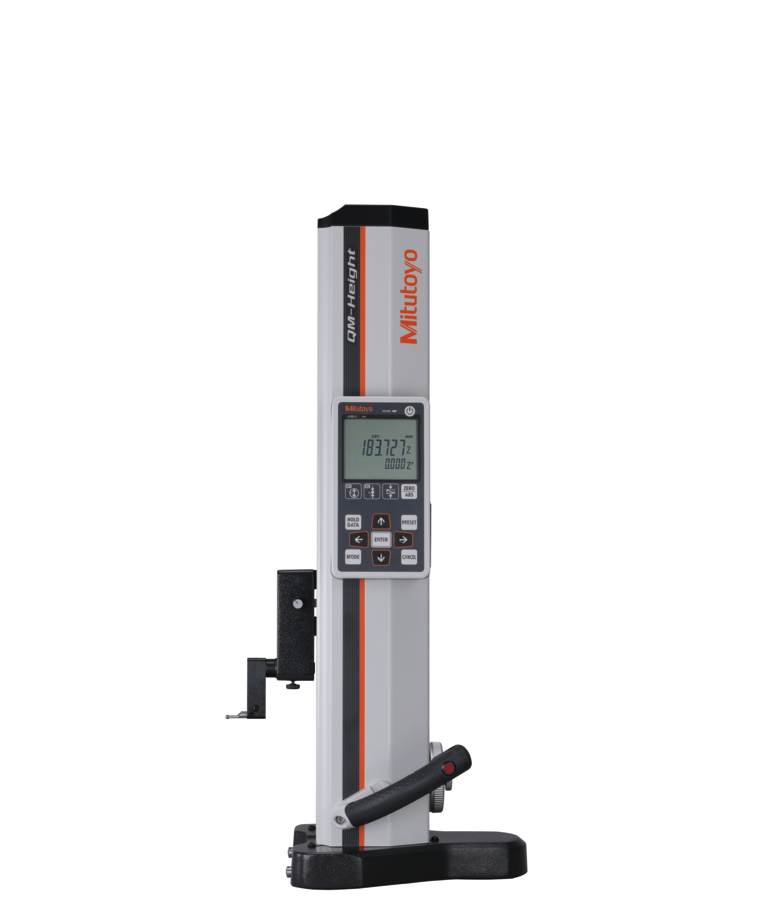

MITUTOYO QMH-14"BX 高精度电子尺 (0mm- 465mm)

Measuring range (stroke): 0mm- 465mm (350mm/14")

Resolution: 0.001mm/ 0.005mm/0.00005"/0.0001"/0.0002"

Repeatability: 2σ ≤ 1.8µm

Perpendicularity (20°C): 7µm

Measuring force: 1.5 ± 0.5 N

Air-float: Available

Driving method: Manual

Guiding method: Roller bearing

Detection method: Electromagnetic induction Absolute encoder

Power supply: Alkaline battery size AA LR6 (4pcs), rechargeable battery size AA Ni-MH (4pcs.), AC-Adapter (optional)

Mass: 25kg

Dimensions (WxDxH): 280x273x784mm

Operating temperature range (recommended): 0°C to 40°C (10°C to 30°C)

Operating humidity range: 20 % to 80%RH (with no condensation)

Storage temperature range: -10°C to 50°C

Storage humidity range: 5% to 90% RH (with no condensation)
