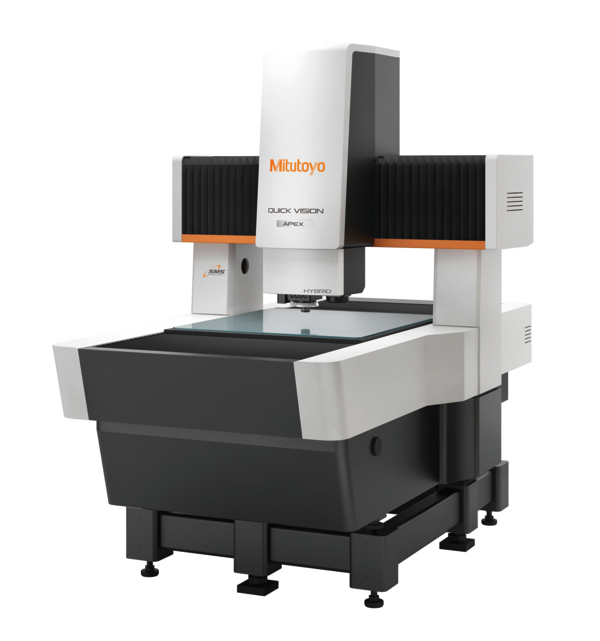

MITUTOYO QV-X606P1L-E 光学测量系统 (600×650×250 mm; White LED)

Measuring range (X×Y×Z): 600 x 650 x 250 mm

Max. stage loading: 50 kg

Common to vision displacement sensor (X×Y×Z): 534 x 650 x 250

Main unit mass (Including the special sub-base): 1465 kg

Vision measuring accuracy:

+ EUX,MPE/EUY,MPE>/sub> = (1.5+3L/1000) µm

+ EUZ,MPE = (1.5+4L/1000) µm

+ EUXY,MPE = (2+4L/1000) µm

Resolution of scale: 0.1 µm

Illumination unit: Contour illumination: White LED Vertical surface illumination: White LED PRL: White LED

Observation unit: Programmable power turret 1X-2X-6X

Thermal compensation function: Manual
