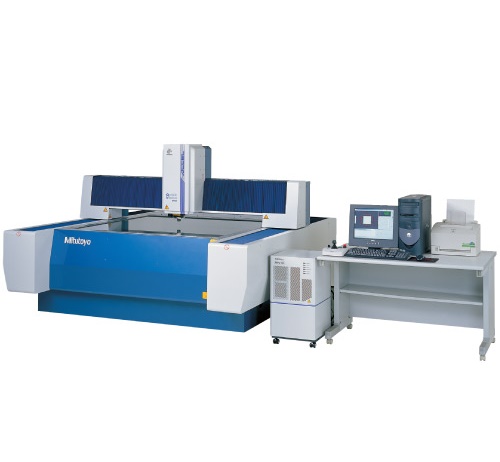

MITUTOYO QV ACCEL1212PRO CNC 影像测量系统 (1250mm 1250mm 100mm)

Range X-Axis: 0-50in 0-1250mm

Range Y-Axis: 0-50in 0-1250mm

Range Z-Axis: 0-4in 0-100mm

Resolution: 0.1µm

High-sensitivity CCD camera: BW

Accuracy (20°C 1.0°C): E1xy-(2.2+3L/1000)µm

E1z-(4.0+5L1000)µm

E2xy-(3.5+4L/1000)µm

Max.Drive Speed: X/Y 300/150mm/s

Illumination: Surface-LED,white; Contour-LED,White; PRL-LED,white (4 divisions)

Magnification change system: Programmable power (1x ,2x ,6x) turret

Stage glass size: 56.7x56.7in 1440x1440mm

Dimension: 85.3x92x61in 2166x2340x1554mm

Mass: 7920lbs 3600kg

Detail

Datasheet
