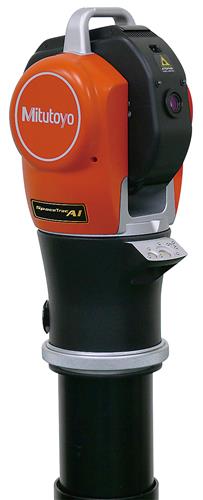

MITUTOYO SpaceTrac-AP Laser tracking system ( ADM)

Integrated type

Laser technology: ADM

Measuring range

  Azimuth range: 640°(±320°)

  Elevation -59°to +79°

  Distance range: 40 m/100 m/160 m±15 µm +5 µm/m

Accuracy of a 3D coordinate*1 *2: ±10 µm +5 µm/±15 µm +5 µm/m

Angular accuracy: 3.5 µm/m

Distance accuracy*2:

   ADM: ±15 µm or 0.7 µm/m (whichever is greater)

Mass: 9.8kg

Accessories

Mounts for the SMR

Dedicated tripod for tracker

vProbe ( Hard probe for laser tracking)
