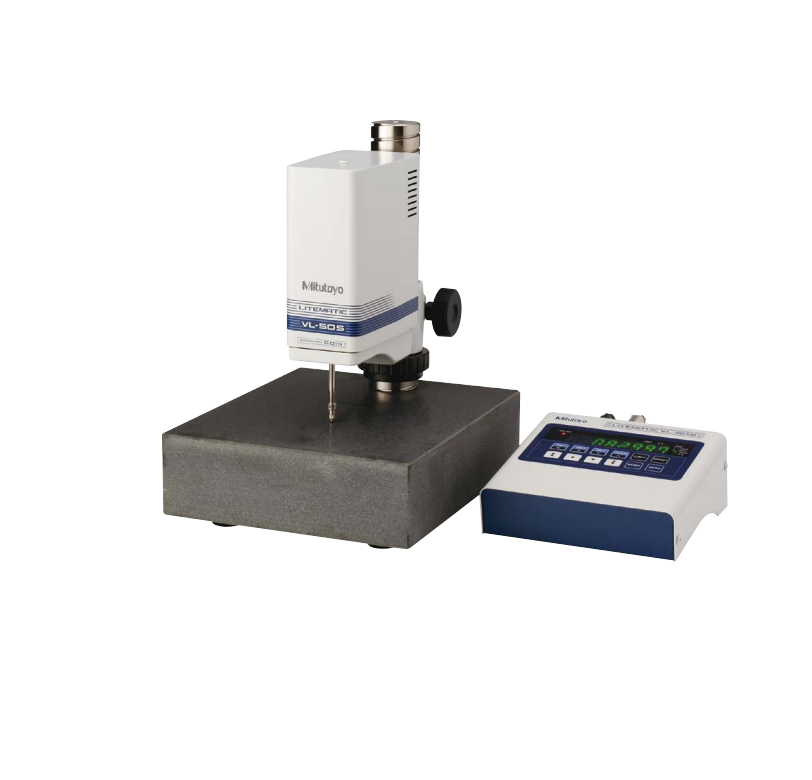

MITUTOYO VL-50S-100-B 高分辨率数字测量单元 (0~50 mm, 1 N)

Measuring range: 0 to 50 mm (0 to 2 in)

Resolution: 0.01/0.1/1.0 µm (0.0000005 in/0.000005 in/0.00005 in)

Display unit: 8 digits/14 mm (0.6 in) character height (without signs)

Scale type: Reflection type linear encoder

Stroke: 51.5 mm (2 in) (when using a standard contact point)

Measuring accuracy(20 °C)*1: (0.5 + L/100) µm L=arbitrary measuring length (mm)

Accuracy guaranteed temperature*2: 20±1 °C

Repeatability*1: =0.05 µm

Measuring force*1:  1 N

Feed speed:

 + Measurement: Approx. 2 mm/s (0.08 in/s) or 4 mm/s (0.16 in/s) (changeable by parameter)

 + Fast feed: Approx. 8 mm/s (0.3 in/s)

Contact point: ø3 mm carbide tipped (fixing screw: M2.5 (P=0.45) ×5), standard contact point: 901312

Measuring table: —

Input: Foot switch input (when optional foot switch is used) External Control

Output: Digimatic output/RS-232C output (changeable by parameter)


 + Power supply 85 to 264 V AC (depends on AC adapter)

 + Power consumption Max. 12 W (12 V, 1 A)

Standard Accessories

 + AC adapter: 357651, Grounding wire: 09CAA985,

 + AC cable (Japan): 02ZAA000, AC cable (USA): 02ZAA010, AC cable (EU): 02ZAA020,

 + AC cable (UK): 02ZAA030, AC cable (China): 02ZAA040, AC cable (Korea): 02ZAA050

 + Hex wrench (2 pcs. for fixing contact point and for removing fixing bracket)


Ideal for measuring the thickness or height of a workpiece that can be easily affected by the measuring force

- With a measuring force of only 0.01 N, the Litematic is ideal for measuring easily deformed workpieces or high-accuracy components.

- For workpieces for which 0.01 N is insufficient, either the 0.15 N or 1 N model is recommended.

- The spindle is motor-driven and stops when the contact point touches the workpiece. From then on, the maximum, minimum, or difference

value can be measured using a constant measuring force.
