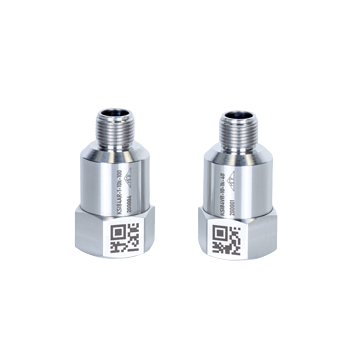

MMF KSI84Ax 振动传感器 (4-20mA)
制造商: MMF Model: KSI84Ax 来源: Germany - 联系
Measurand: Acceleration
Output: 4-20 mA current loop
Overall value:
KSI84AR-x-x-x • RMS
KSI84AP-x-x-x • Peak
Linear frequency range:
High pass -3dB: 1,5/3/10/30/100/1k Hz
Low pass -3dB: 100/300/1k/5k/10k Hz
Nominal Range: 10/20/50/100/200/500 m/s² ± 2 %
IP protection grade: IP68
Operating temperature range: -40 .. 100 °C
Connector: Binder 713 (M12), axial
Weight: 60 g
Option:
Connection accessories:
• 080G/W: angled (W) or straight (G) plug with 4 pins Mod. Binder 713 with screw terminals and Pg7 cable gland for cable Ø 4.. 6 mm; IP67
• 082-B713G-PIG-5; 082-B713W-PIG-5: 4 wire cable; 5 m; with angled (W) or straight (G) plug Binder 713 and pigtail ends
• M12DIS: Display module for 4-20 mA current loops, viewing area: 47 mm x 18 mm, with LED back light
Mounting accessories:
• 043: Mounting stud M8
• 229: Stainless steel adhesive pad M8
• 208: Magnetic base M8
• 230: Triaxial mounting cube M8
Datasheet
