Monroe Electronics 282is静电场测量仪 - 手持式 - 本安型

Manufature: Monroe Electronics
Model: model 282is

Display: LCD, 3½¬digit with auto polarity
readout, with HOLD and LOW BATT indicators
Range: 0 to ±19.99kV at 1 inch.
Voltages over 20kV and higher may be read by increasing the distance to the target Multiply
kV Distance reading by
0¬40 4.0 inches 2
0¬80 8.5 inches 4
Accuracy: ±5% of reading, + zero offset, 2 Isd
Analog output 1 V signal denotes 10kV reading
Amplitude: at 1 inch for high impedance loads
Response Time: Typ. 80 ¬ 100 msec 10 ¬ 90%

Jack Type: Accepts standard 3/32 inch
(2.5mm) monaural phone plug
Battery: 9V NEDA #1604 or equivalent,
Life: 40 hours of normal use, with
alkaline battery
Physical: (L x W x H): (6.1 x 10.7 x 2.3 cm)
Weight: (0.14kg) with battery
Environment: (non¬condensing),
unaffected by ionized equipment

282IS Industrial Approval and certification:
CE mark approved UL Certification Class I Groups A, B, C, D, and Class II Groups E, F, G, when powered by 9¬volt carbon zinc
or zinc chloride battery NEDA 1604
or NEDA 1604D.
UL Certification for Class I, Division 1,
Groups C and D only when powered
by 9¬volt alkaline NEDA 1604A

Option 282CPS Charge Plate System


Download Data Sheet ›
Download Manual ›

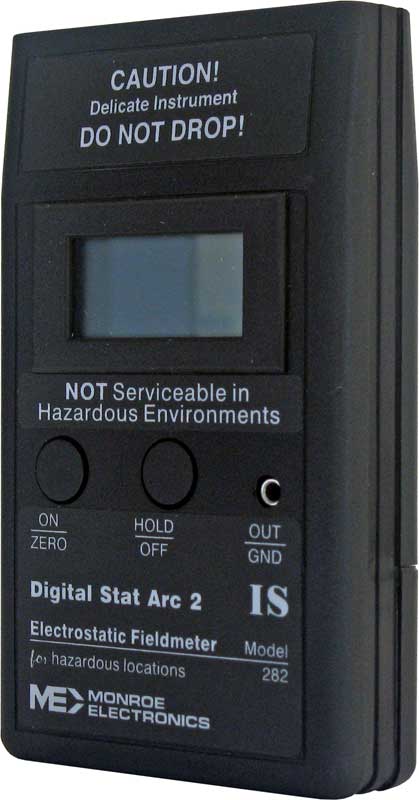

Electrostatic Fieldmeter - Hand Held - model 282A



The Digital Stat-Arc 3, model 282A and Digital Stat-Arc 2IS, model 282IS are full-featured hand-held fieldmeters used to perform static surveys and evaluate charge accumulation in electronic manufacturing and in industrial operations such as converting, printing, packaging, and plastics processing.
  • Easy-to-read digital display of field strength provides quantitative data with 100V resolution
  • LED pulsed beam range finder identifies calibrated distance from the surface
  • Chopper-stabilized measurement technique works in the presence of ionization
  • Recorder output to pass measurements to auxiliary instruments to display or record the data
  • Optional Charge Plate System for testing ionization systems
  • Model 282IS is UL approved for use in hazardous environments
