Monroe 291 Monroe Electronics 291 表面电阻率测试仪

Range: 103 to 1012 with LED’s for under-range and over-range

Accuracy: ±1/2 decade
Applied Voltage: 10 volts at 103 to 105
                              100 volts at 106  to 1012
Display Type: Multi-colored LED’s (greenconductive, yellow-dissipative and red-insulative)
Electrodes: Parallel bar type (jacks for external connections)
Battery Type: 9 volt, Eveready #522 or
equivalent NEDA #1604A
Dimensions: (6.5 x 13 x 3 cm)
Weight: (235 gm) including battery

Details

Datasheet

Manual

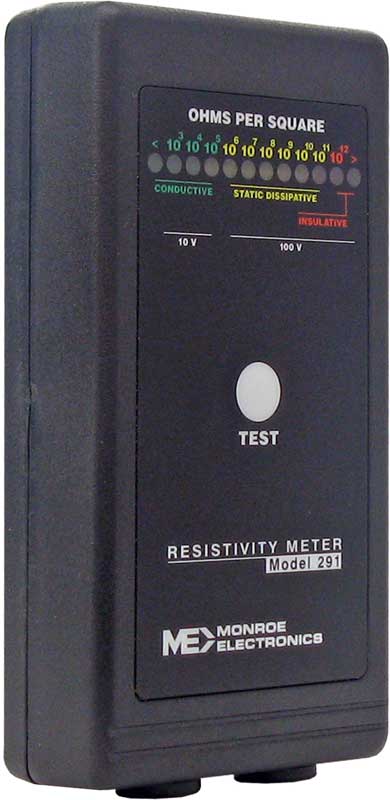

Resistivity Meter - model 291

Pictures | Documents | Probes and Accessories model


291


The model 291 is a portable, battery-operated survey instrument for evaluating the resistive properties of static control products such as static dissipative packaging, flooring, or work surfaces over the range of 10E3 to 10E12 ohms or ohms per square.

The model 291 uses a parallel electrode configuration conforming to ASTM D-257. It also accepts external electrodes for point-to-point and resistance-to-ground measurements. A test lead is included for resistance-to-ground measurements. Model 291 is convenient and easy to use. Simply place the 291 directly on the item to be measured. An easy-to-read, color-coded LED decade display quickly and clearly indicates the resistivity or resistance range.

  • Survey tool
  • 10V and 100V test voltages
  • Portability and rugged construction ideal for manufacturing environment

  PICTURES [click on image for larger view]

291

291

291 End View

291 Front View

291 Back View

  DOCUMENTS

Download Data Sheet ›

Download Manual ›

  PROBES and ACCESSORIES

MODEL DESCRIPTION

96164 Miniature Point-to-Point Resistance Probe:
Download Data Sheet ›
